24" Static-Dissipative PVC Pass-Through Desiccator Cabinet
24" Static-Dissipative PVC Pass-Through Desiccator Cabinet
SKU:SIX-4c0ad2
Static-dissipative PVC desiccator cabinet with 6 pass-through chambers for ESD control and static charge elimination.
Regular price
$2,799.99
Regular price
Sale price
$2,799.99
Unit price
per
Initiate Order
24" Static-Dissipative PVC Pass-Through Desiccator Cabinet
$2,799.99
Quantity: 1
Claim Your Seller Account
24" Static-Dissipative PVC Pass-Through Desiccator Cabinet
$2,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

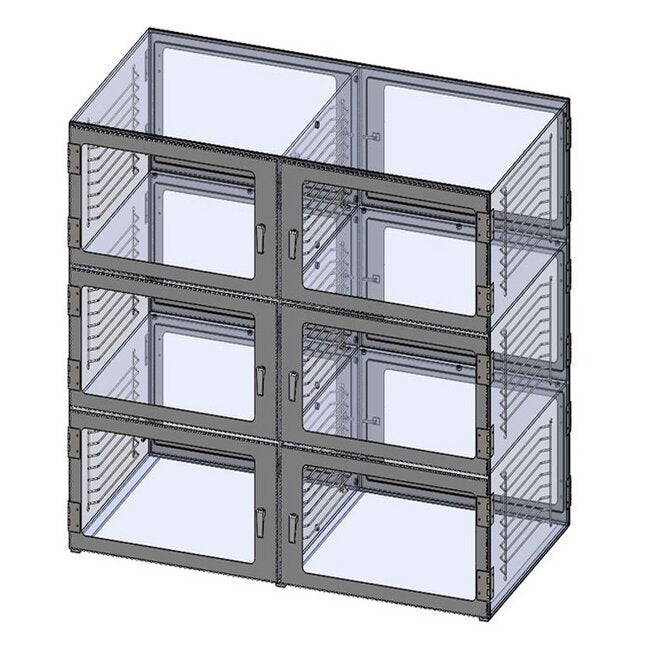

The 24 Inch Static-Dissipative PVC Pass-Through Desiccator Cabinet features six chambers designed for pass-through operations in controlled environments. Constructed with static-dissipative PVC material, it eliminates static charges, maintains cleanliness, and ensures ESD control without ionization. This cabinet includes stainless steel components, optional accessories like gas-in port, automatic purge control unit, and humidity sensors, offering a complete solution for static-safe storage.
Product Specifications
Additional Information Additional Information
Eliminates static charges and keeps the dry box clean since it does not attract particles from the air. Surface resistivity of 106-108 ohms per square. Provides for ESD control without the need for ionization.A grounding system for electrostatic discharge.Front and rear access doors allow for pass-through operations.Stainless steel door frame and door hinge.Stainless steel wire rack for shelving. A pair of wire racks is needed for each chamber and are optional if there are no shelves.Metal lift-and-turn latch.Single-piece Santoprene seal.
Applications 0
Pass-Through Chambers
Options Options
Gas-in Port & Pressure Relief Valve (1/4" OD tubing fitting)One-Channel Automatic Purge Control Unit (PCU) with one humidity sensor.Flowmeter with an external valve mount. Flowmeter range is from 2-20 SCFH air. (It is not required if you order a PCU.)Big Digit Hygro-Thermometer (Humidity range: 10% to 99 % RH/ Temperature range: 14º F to 140º F)Small Digit Hygro-Thermometer (Humidity range: 10% to 99 % RH/ Temperature range: 14º F to 140º F)Epoxy powder coated steel stand with caster (including two locking). Available in 30'' and 35'' height with an optional upgrade to leveling mounts.Perforated stainless steel, acrylic or static-dissipative PVC shelves. (Wire racks are required for shelf placement.)Cam lock with an option to have the same or different key for each door. Please note that the price for the cam lock is per door.Stainless steel locking bracket for use with a padlock. Please note that the price for the locking bracket is per door.Stainless steel bottom plate installed on the bottom of each chamber.Chambers can either be interconnected using a perforated chamber divider or isolated to maintain a controlled environment.
Specifications Chamber Depth
24 in
Specifications Chamber Height
12 in
Specifications Chamber Width
24 in
Specifications Door Opening Height
10.1875 in
Specifications Door Opening Width
22.375 in
Specifications Internal Usable Space Depth
22.125 in
Specifications Internal Usable Space Height
11.75 in
Specifications Material
Static Dissipative Polyvinyl Chloride (PVC)
Specifications Number Of Chambers
6
Specifications Overall Depth
24 in
Specifications Overall Height
36 in
Specifications Overall Width
48 in
Specifications Usable Area Shelf Space Depth
21.5 in
Specifications Usable Area Shelf Space Width
21.5 in
