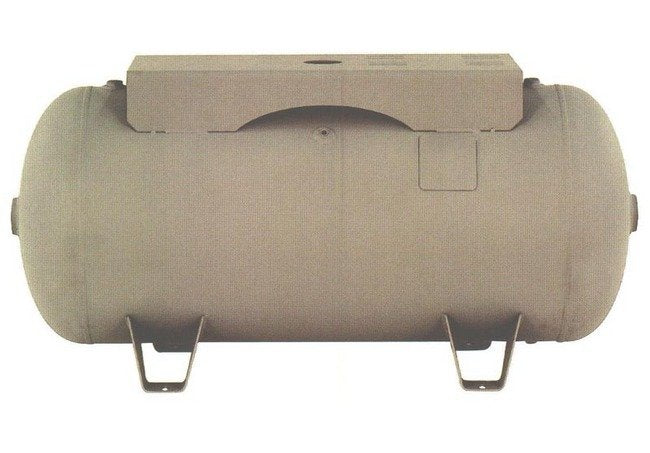

240-Gallon Horizontal Air Receiver Tank with Legs & Top Plate
240-Gallon Horizontal Air Receiver Tank with Legs & Top Plate
SKU:REC-d149b1
High-capacity 240-Gallon Horizontal Air Receiver Tank for efficient compressed air storage with 200 psi MWP.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
240-Gallon Horizontal Air Receiver Tank with Legs & Top Plate
$899.99
Quantity: 1
Claim Your Seller Account
240-Gallon Horizontal Air Receiver Tank with Legs & Top Plate
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

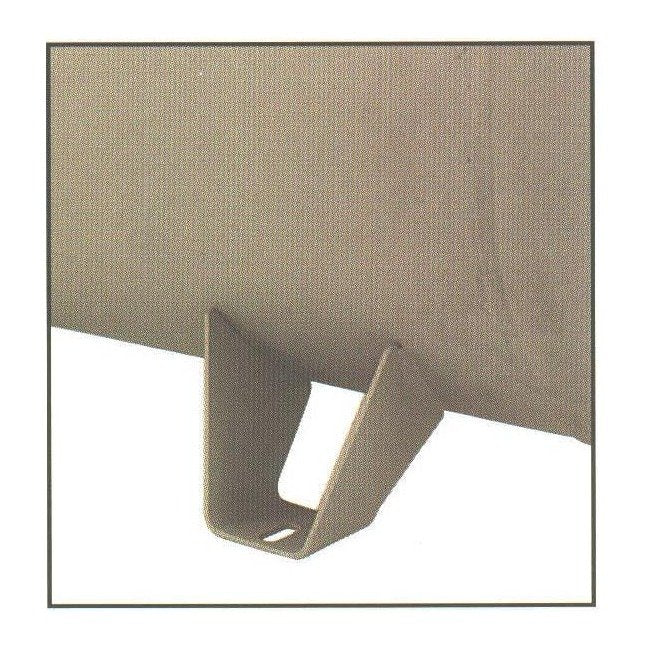

The 240-Gallon Horizontal Air Receiver Tank is designed for efficient compressed air storage. With a maximum working pressure of 200 psi, this tank offers ample capacity for various industrial applications. Measuring 44.00 inches in length, 30.38 inches in width, and 35.69 inches in height, it provides a significant volume of 32.09 cubic feet. The tank is equipped with saddles for stability, ensuring secure placement. Its sturdy construction and top plate of 0.25 x 19 x 48 inches make it a reliable choice for air compression systems in both commercial and government facilities.
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Specifications Cross Reference
A10038
Specifications Dimension A
11.63 inches
Specifications Dimension B
30.38 inches
Specifications Dimension C
20.00 inches
Specifications Dimension D
44.00 inches
Specifications Dimension E
23.50 inches
Specifications Dimension F
3.00 inches
Specifications Feet
Saddles
Specifications Ht
35.69 inches
Specifications Mawp
200 psi
Specifications Nominal Capacity
240 gal | 32.09 ft³
Specifications Npt Opening G
2 inches
Specifications Npt Opening H
2 inches
Specifications Npt Opening J
1 inches
Specifications Od
30.00 inches
Specifications Size
13/16 x 1 1/2 inches
Specifications Tl
84.00 inches
Specifications Top Plate
0.25 x 19 x 48
Specifications Tw
716
