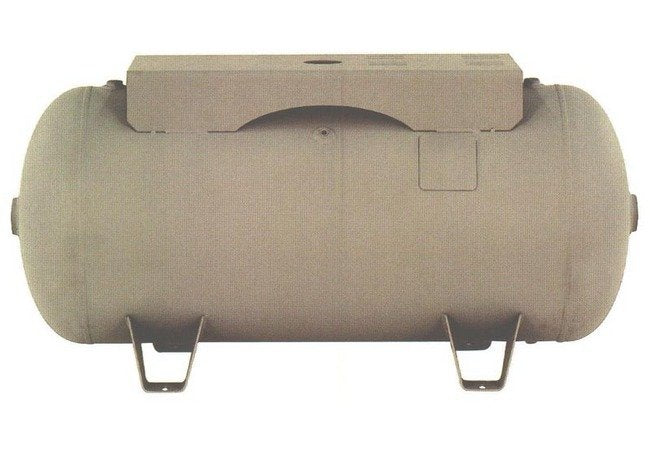

240-Gallon Horizontal Air Receiver with 200 PSI MWP Legs

Name: 240-Gallon Horizontal Air Receiver with 200 PSI MWP Legs
Brand: Compressed Air Systems, Inc.
SKU: REC-658e5b
Price: 899.99 USD
Availability: OutOfStock

SKU:REC-658e5b

High-quality 240-Gallon Horizontal Air Receiver with 200 PSI MWP, ideal for industrial use

$899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 240-Gallon Horizontal Air Receiver with a maximum working pressure (MWP) of 200 psi is designed for efficient compressed air storage. With a nominal capacity of 240 gallons (32.09 ft³), this receiver tank is ideal for industrial applications requiring reliable air supply. The sturdy design with legs ensures stability and easy installation. Its dimensions (HT: 33.00 inches, O.D.: 30.00 inches) make it versatile for different spaces. This tank complies with Federal/DoD procurement standards and industry certifications, meeting the highest quality and safety requirements.

Product Specifications

Financing Approve Payments

Finance with Approve Payments

Specifications Cross Reference

A10037

Specifications Dimension A

11.63 inches

Specifications Dimension B

30.38 inches

Specifications Dimension C

20.00 inches

Specifications Dimension D

44.00 inches

Specifications Dimension E

23.50 inches

Specifications Dimension F

3.00 inches

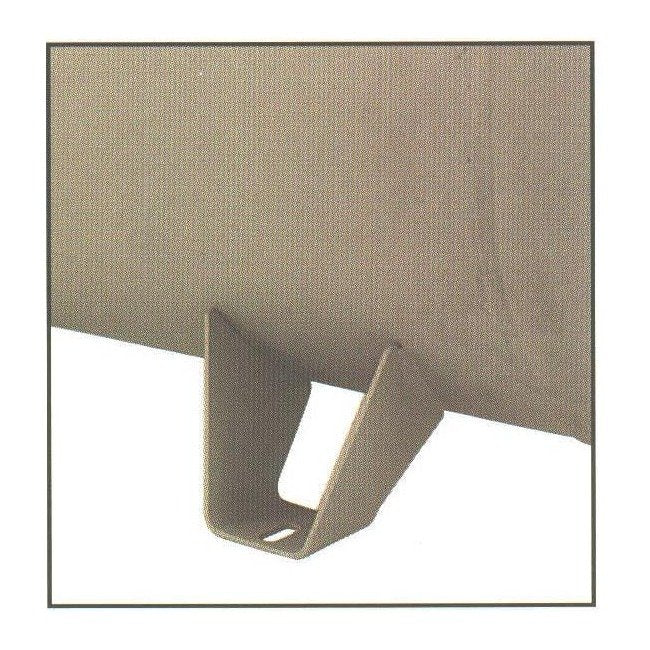

Specifications Feet

Saddles

Specifications Ht

33.00 inches

Specifications Mawp

200 psi

Specifications Nominal Capacity

240 gal | 32.09 ftÂ³

Specifications Npt Opening G

2 inches

Specifications Npt Opening H

2 inches

Specifications Npt Opening J

1 inches

Specifications Od

30.00 inches

Specifications Size

13/16 x 1 1/2 inches

Specifications Tl

84.00 inches

Specifications Tw

618
