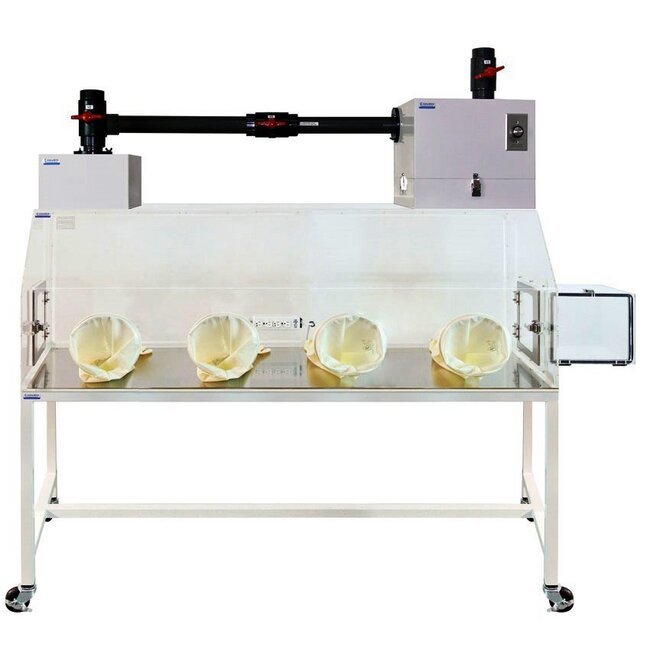

2400 Series Static-Dissipative Acrylic Closed Loop Glovebox - 60 Inch
2400 Series Static-Dissipative Acrylic Closed Loop Glovebox - 60 Inch
SKU:240-12195a
Get superior ESD control and a clean, particulate-controlled environment with the 2400 Series Static-Dissipative Acrylic Closed Loop Glovebox - 60 Inch. Ideal for nanotech, semiconductor, and pharma industries.
Regular price
$4,999.99
Regular price
Sale price
$4,999.99
Unit price
per
Initiate Order
2400 Series Static-Dissipative Acrylic Closed Loop Glovebox - 60 Inch
$4,999.99
Quantity: 1
Claim Your Seller Account
2400 Series Static-Dissipative Acrylic Closed Loop Glovebox - 60 Inch
$4,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 2400 Series 60 Inch Four-Port Multi-Configuration Static-Dissipative Acrylic Closed Loop Glovebox combines the isolation features of the 2100 series with HEPA filtration. Ideal for nanotechnology, semiconductor, and pharmaceutical industries, this glovebox offers ESD control, a static-dissipative coating, and conversion flexibility. With Clear, Particulate-Controlled Environment properties, it ensures clean and secure critical processing operations.
Product Specifications
Additional Information Additional Information
Two access doors open outwards (or inwards upon request) for negative pressure configuration. If an airlock is included, airlock doors open inwards. Doors include a stainless steel door frame, hinge, one-piece non-adhesive sealing.Blower module, adjustable speed, backward curved impeller 480-CFM, permanently lubricated, automatic reset thermal overload protection, 120VAC, 60Hz, UL Listed; CSA Certified; Enclosed in a polypropylene housing.Primary HEPA filter is 99.97% efficient at trapping particles as small as 0.3 microns. Filter media is ultra-fine glass fiber and is 3" thick. The maximum temperature is 180° and the filter meets UL Class 2 flame retardant requirements.Removable (fully gasketed) back wall for operations involving large equipment. (Fixed by screw)
Options Options
Secondary HEPA filter is 99.97% efficient at trapping particles as small as 0.3 microns.ULPA filter is 99.999% efficient at trapping particles as small as 0.12 microns. The 3" thick filter removes contaminants from the exhaust gas, making it safe for indoor release.Gas-in port & pressure relief valve is required when using cold dry air (CDA), nitrogen or an inert gas to reduce humidity.Hospital-grade power strip with four outlets that provide 110 VAC. Designed to be utilized within the glovebox workspace.Automatic Nitro Purge Control Unit Type S*Automatic Nitro Purge Control Unit Type D**Oxygen Monitor (oxygen analyzer) with a single range of 0-100% (-/+1%)Stainless steel work surface or spill tray helps to limit surface damage. Recommended for Static Dissipative PVC gloveboxes to protect the anti-static coating.Epoxy powder coated steel stand with caster (including two locking). Clean room compatible, the stands are available in 30'' and 35'' height with an optional upgrade to leveling mounts.
Specifications Approximate Chamber Volume
18 ft³
Specifications Chamber Size
Large
Specifications Configuration
Filtration Closed Loop
Specifications Main Chamber Overall Depth
24 in
Specifications Main Chamber Overall Height
25 in
Specifications Main Chamber Overall Width
60 in
Specifications Material
Static-Dissipative Acrylic
Specifications Material Thickness
1/4 in
Specifications Number Of Glove Ports
4
Specifications Overall Airlock Depth
10.5 in
Specifications Overall Airlock Height
10.5 in
Specifications Overall Airlock Width
11.75 in
Specifications Side Door Opening
10 x 10 in
