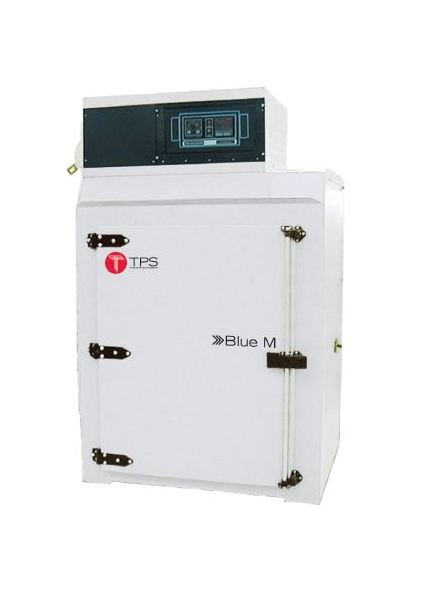

246 Model Inert Gas Industrial Batch Oven
246 Model Inert Gas Industrial Batch Oven
SKU:BLU-38db3a
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
246 Model Inert Gas Industrial Batch Oven
$49.99
Quantity: 1
Claim Your Seller Account
246 Model Inert Gas Industrial Batch Oven
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Industrial Batch Ovens have for years been meeting a variety of test and production applications. Their reliability and fine performance have made them the choice of many industries.
Product Specifications
Specifications Ac Voltage At 3 Phase
208 V | 240 V | 480 V
Specifications Coil Flow Rate At 40f
3 gpm
Specifications Cool Down Time 650f To 150f
70 m
Specifications Electrical Service
Hi Power | Standard
Specifications Engineered Oven Options
Additional lead-in ports | All stainless steel construction | Comm-Link RS-485 to RS-232 converter | five-door configurations for process flexibility | Glass observation panel(s) | Interior light | Rear access door(s) | Redundant over-temperature protection | Special control systems
Specifications Exterior Depth
39 in | 99.1 mm
Specifications Exterior Height
85 in | 215.9 mm
Specifications Exterior Width
63 in | 160 mm
Specifications Frequency
60 Hz
Specifications Interior Depth
24 in | 60.7 mm
Specifications Interior Height
48 in | 121.9 mm
Specifications Interior Volume
24 ft³
Specifications Interior Width
36 in | 91.4 mm
Specifications Line Current At 208 Volts V 3 Phase Hi Power
48 A
Specifications Line Current At 208 Volts V 3 Phase Standard
33 A
Specifications Line Current At 240 Volts V 3 Phase Hi Power
54 A
Specifications Line Current At 240 Volts V 3 Phase Standard
38 A
Specifications Line Current At 480 Volts V 3 Phase Hi Power
28 A
Specifications Line Current At 480 Volts V 3 Phase Standard
19 A
Specifications Machine Footprint
17.1 ft²
Specifications Oven Features
Heavy-gauge steel exterior and interior panels | Welded 14 and 16 gauge | Cold-rolled reinforced steel | Stainless steel-reinforced 304 | Fiberglass insulation - 4 full inches minimizes heat loss | Baked-on powder-coated enamel finish | Double-wall, insulated doors | Silicone rubber seal with double doors on 48-inch and larger models | Side-mounted control compartment for easier control access (60, 80, and 96 cu. ft. models only) | Manually adjustable intake/exhaust system
Specifications Oven Options
Circular chart recorder | Glass observation panel | Nickel-plated wire rod or stainless steel slotted shelves | Welded and sealed inner chamber (vapor tight)
Specifications Purge Time
24 m
Specifications Rated Power At 208 Volts V 3 Phase Hi Power
16 kW
Specifications Rated Power At 208 Volts V 3 Phase Standard
11 kW
Specifications Rated Power At 240 Volts V 3 Phase Hi Power
21 kW
Specifications Rated Power At 240 Volts V 3 Phase Standard
14 kW
Specifications Rated Power At 480 Volts V 3 Phase Hi Power
21 kW
Specifications Rated Power At 480 Volts V 3 Phase Standard
14 kW
Specifications Roll In Rack Options
Custom designed roll-in racks for product fixturing | Pass-through “tunnel” design with front and rear doors | Roll-in rack shelves | Special truck channel or flat uninsulated floor for customer designed racks | Stainless steel roll-in racks
Specifications Standard Batch Oven Options
Stainless steel slotted shelves | High-temperature capability of 399°C (750°F) | High power for fast heat-up, high exhaust or large loads | Door switch | Motorized intake damper | Welded and sealed inner chamber | 24-hour, 7-day program timer | 10 Inch (in) circular chart recorder | Reverse door hinge | Back-up over-temperature protection
Specifications Standard Purge Rate
600 SCFH
Specifications Standard Run Rate
300 SCFH
Specifications Uniform Accurate And Reliable Temperature Control
Direct drive blower | Horizontal air flow | Low waft density | One-pass air flow | Profiling or single setpoint controls
