The 24CB500 Single Flange CB Elements offer unmatched performance for drum clutches and brakes. With a robust torque rating of 75000 lb·in, maximum speed of 1200 rpm, and precise dimensions, these elements ensure reliable operation under varying conditions. Weighing 102 lbs and featuring 14 friction shoes, these elements provide durability and consistency. Ideal for industrial applications requiring high torque and speed control.

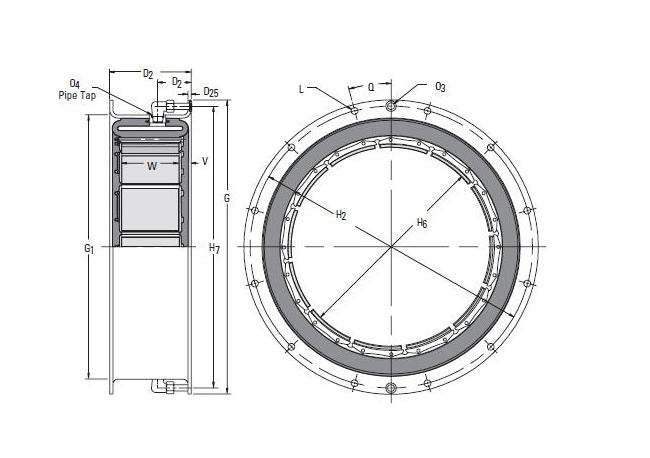

Product Specifications
Note 0
Refers to basic part number only. When ordering, the number of air inlets and type of connection must be specified.
Specifications Air Inlet Thread
3/8-18
Specifications Air Tube Cavity
200 in³ | 3.28 dm³
Specifications Angle Q
11.250 º
Specifications Bolt Hole Size L
0.500 in | 13 mm
Specifications Centrifugal Loss Constant Cs
2.07 E-06 bar/rpm2 | 30 E-06 psi/rpm2
Specifications Dimension D2
6.63 in | 168 mm
Specifications Dimension D24
2.50 in | 64 mm
Specifications Dimension D25
0.19 in | 5 mm
Specifications Dimension G
31.500 in | 800.1 mm
Specifications Dimension G1
28.75 in | 730 mm
Specifications Dimension H2
30.375 in | 771.5 mm
Specifications Dimension H6
24.19 in | 614 mm
Specifications Dimension H7
30.38 in | 772 mm
Specifications Dimension O3
0.38 in | 10 mm
Specifications Dimension V
0.81 in | 21 mm
Specifications Friction Area
338 in² | 2180 cm²
Specifications Friction Shoe Width W
5.00 in | 127 mm
Specifications Inertia
142 lb·ft² | 5.96 kg·m²
Specifications Maximum Speed
1200 rpm
Specifications Minimum Drum Diameter
23.87 in | 606 mm
Specifications New Friction Lining Thickness
0.26 in | 7 mm
Specifications Number Of Friction Shoes
14
Specifications Number Of Mounting Holes
16
Specifications Size
24CB500
Specifications Torque Rating 75 Psi55 Bar
75000 lb·in | 8480 Nm
Specifications Weight
102 lb | 46 kg
Specifications Worn Friction Lining Thickness
0.06 in | 2 mm
