24V DC 1A Wall Plug-In Power Supply - Negative Polarity Center, Level VI Efficiency

Name: 24V DC 1A Wall Plug-In Power Supply - Negative Polarity Center, Level VI Efficiency
Brand: Triad Magnetics
SKU: WAL-5113a6
Price: 29.99 USD
Availability: OutOfStock

SKU:WAL-5113a6

Reliable 24V DC 1A power supply for various applications with Level VI Efficiency & Negative Polarity Center

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 24V DC 1A Wall Plug-In Power Supply is a versatile solution designed for both consumer and institutional applications. With an input voltage range of 100-240V and interchangeable plugs, this switch mode power supply offers convenience and flexibility. Featuring Level VI efficiency and a negative polarity center, it ensures reliable and efficient power output. The compact dimensions make it ideal for various settings where space is limited. Trust in this power supply for consistent performance and compliance with industry standards.

Product Specifications

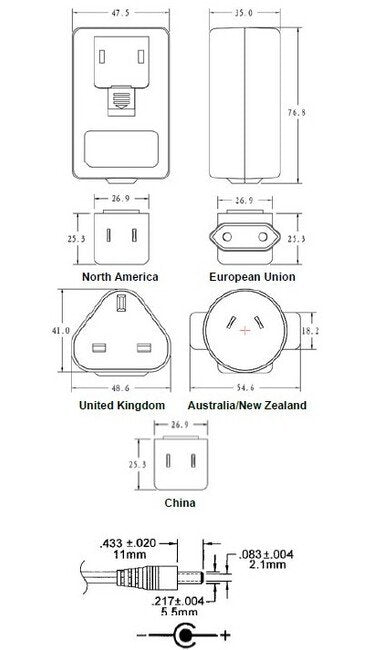

Case Dimensions Depth D

1.38 in | 35.00 mm

Case Dimensions Height H

3.02 in | 76.80 mm

Case Dimensions Width W

1.87 in | 47.50 mm

Electrical Specifications At 25 Degree Celsius C Temperature Inp

50 to 60 Hz

Electrical Specifications At 25 Degree Celsius C Temperature Out

1.0 A

Output Plug Dimensions Inside Diameter Id

0.083Â±0.004 in | 2.1 mm

Output Plug Dimensions Length L

0.433Â±0.020 in | 11 mm

Output Plug Dimensions Outside Diameter Od

0.217Â±0.004 in | 5.5 mm

Specifications 2007 Eisa Efficiency

Specifications Polarity Center

Negative

Specifications Type

Switchmode

24V DC 1A Wall Plug-In Power Supply - Negative Polarity Center, Level VI Efficiency
