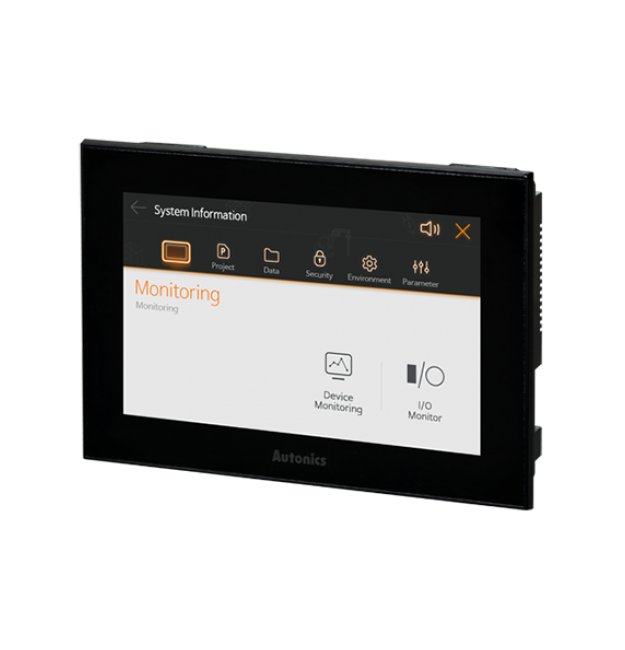

24V DC HMI with 152.4 x 94.44mm Display
24V DC HMI with 152.4 x 94.44mm Display
SKU:PRO-f98e05
Boost control efficiency with Autonics 24V DC HMI, 64MB Graphic Memory, Touchscreen, Real-Time Clock, CE/KC Approved, IP65, 152.4 x 94.44mm TFT LCD.
Regular price
$560.95
Regular price
Sale price
$560.95
Unit price
per
Initiate Order
24V DC HMI with 152.4 x 94.44mm Display
$560.95
Quantity: 1
Claim Your Seller Account
24V DC HMI with 152.4 x 94.44mm Display
$560.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your control systems with the Autonics USA 24V DC Human-Machine Interface. This HMI features a 64MB Graphic Drawing Memory, Analog Touch, RS232C & Ethernet Interfaces, Real-Time Clock, and CE/KC Approval for quality assurance. Operating temperature range of 0-50°C and ingress protection IP65 ensure durability. The 152.4 x 94.44mm TFT LCD display with 800x480 resolution offers clear visuals for efficient monitoring and control. Ideal for industrial & government applications.
Product Specifications
Accessories Accessories
Fixing Bracket: 6, Battery (Included)
Display Specifications Display Area
152.4 x 94.44 mm
Display Specifications Display Color
16,777,216
Display Specifications Display Resolution
800 x 480 dots
Display Specifications Display Type
Thin Film Transistor (TFT) Color Liquid Crystal Display (LCD)
Graphic Drawing Performance Graphic Language
English | Korean
Graphic Drawing Performance Graphic Text
Bitmap ASCII and Vector Font
Graphic Drawing Performance Number Of User Screen
100 Pages
Specifications Approval
European Conformity (CE) | Korean Certification (KC)
Specifications Approximate Net Weight
540 g
Specifications Approximate Weight
742 g
Specifications Dedicated Software
atDesigner | atLogic
Specifications Direct Current Dc Voltage
24 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
0 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Ethernet Interface
Institute of Electrical and Electronics Engineers (IEEE) 802.3(U), 10/100Base-T
Specifications Graphic Drawing Memory
64 MB
Specifications List Price
560.95 USD
Specifications Protection Structure
Ingress Protection (IP) 65 (Front Panel, International Electrotechnical Commission (IEC) Standard)
Specifications Real Time Controller
Real Time Clock (RTC) Embedded
Specifications Rs232c Interface
2 EA
Specifications Touch Method
Analog Touch (Resistive Type)
Specifications Type
Human-Machine Interface (HMI)
Specifications Universal Serial Bus Usb Device Interface
1 EA
Specifications Universal Serial Bus Usb Host Interface
1 EA
Specifications Weight
0.2 lb
