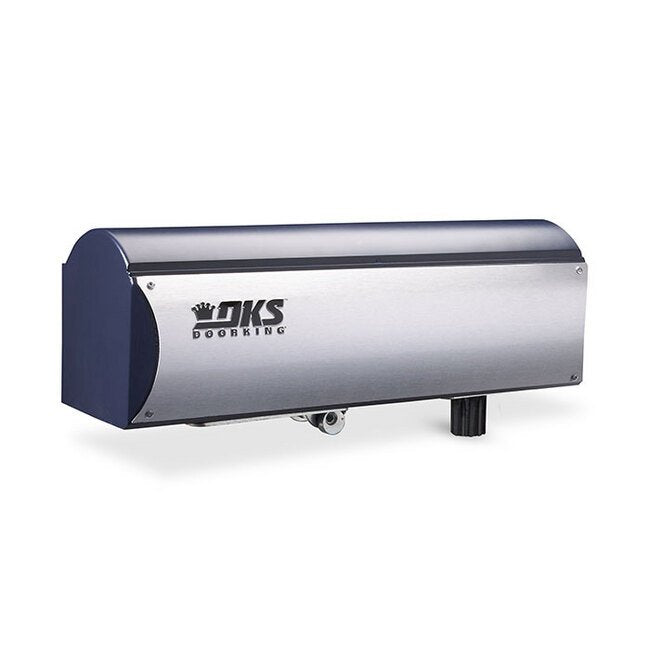

24V DC Voltage Column Mount Swing Gate Operator
24V DC Voltage Column Mount Swing Gate Operator
SKU:LIG-636efd
Versatile 24V DC Swing Gate Operator for smooth, worry-free operation. Compliant with UL standards.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
24V DC Voltage Column Mount Swing Gate Operator
$899.99
Quantity: 1
Claim Your Seller Account
24V DC Voltage Column Mount Swing Gate Operator
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

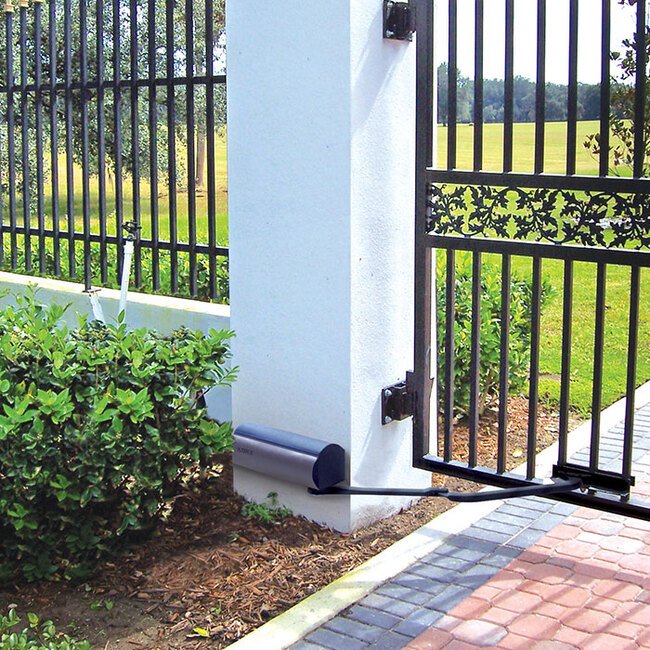

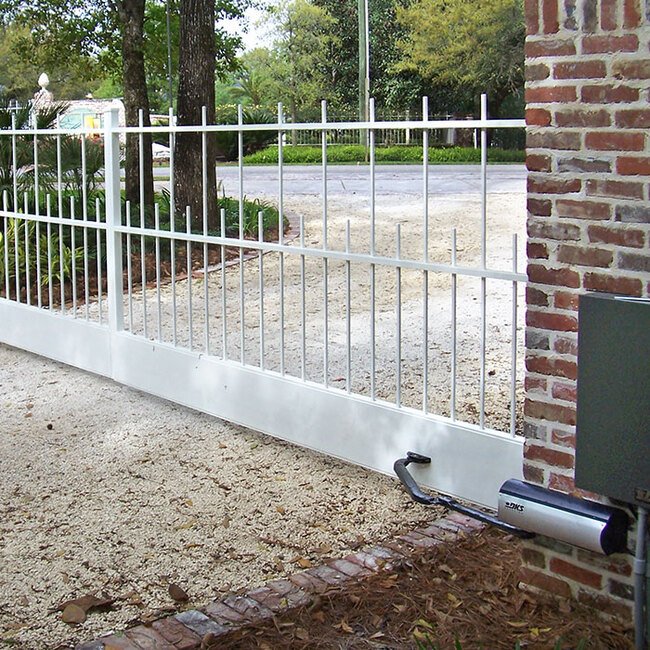

The Direct Current (DC) 24V Voltage Column Mount Swing Gate Operator is a versatile solution for swing gates mounted on large columns. Easy to install without the need for concrete pads, it features a robust screw drive system eliminating worries about hydraulic leaks. With a keyed release system for manual operation during system failures, it offers adjustable limit switches for smooth gate operation. Compliant with UL 325 and 991, this gate operator is suitable for residential applications.
Product Specifications
Additional Information Additional Information
With options for single or bi-parting gates, our Gate Operators are made to withstand the elements and deliver dependable access control, all while maintaining the aesthetic of your gate.
Applications Applications
Residential
Dimensions Height
5.25 in
Dimensions Length
16 in
Dimensions Width
5.13 in
Key Features Key Features
Fully enclosed drive mechanismAdjustable built in limit switches precisely control the start / stop speed, and travel of gate for smooth operation24 VDC operating powerPhoto-cell for entrapment preventionBatteries includedBuilt-in battery chargerPorts for Exit and Reverse plug-in loop detectors90º in approximately 12 secondsGate overlap feature for dual gate operationMagnetic lock power circuitBuilt-in reset and test buttonsMaximum run timerBuilt-in high current warning
Note Note
Solar Powered Control Box option
Options Options
Bi-parting gate connection cable.Magnetic gate lock.Plug-in loop detectors.Solar power.
Specifications 90 Degree Opening Time
18 s
Specifications Alternating Current Ac Voltage
115 V
Specifications Built In Battery Charger
Yes
Specifications Class Of Operation
Class I
Specifications Convenience Outlets
No
Specifications Direct Current Dc Voltage
24 V
Specifications Gate Tracker Data Output
No
Specifications Limited Factory Warranty
2 y
Specifications Limit Switches
Magnetic
Specifications Manual Release
Keyed
Specifications Maximum Gate Length
8 ft
Specifications Maximum Gate Weight
500 lb
Specifications Motor Type
Direct Current (DC) Motor
Specifications Mounting Type
Directly on Column
Specifications Operating Temperature
0 to 46 ºC | 32 to 115 ºF
Specifications Overlap Feature For Bi Parting Operation
Yes
Specifications Ports For Plug In Loop Detectors
Yes
Specifications Slow Start Slow Stop Operation Type
Adjustable built in limit switches precisely control the start / stop speed, and travel of gate for smooth operation
Specifications Solar Compatible
Yes
Specifications Standards
Compliant with Underwriters' Laboratories (UL) 325 and 991
Specifications Usage
Residential
Technical Specifications Technical Specifications

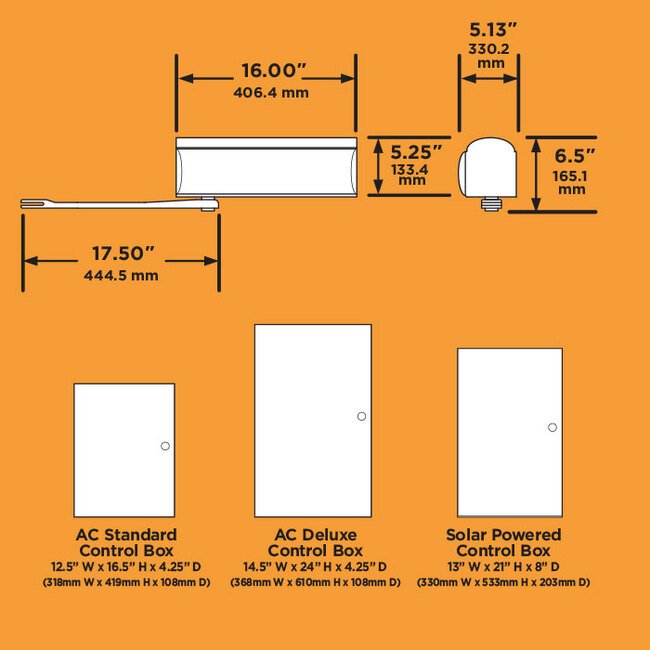

Maximum gate width 8-feet. (Assumes gate swings level and is in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.)Maximum gate weight 500 lbs.115 VAC or 24 VDC Solar powered control box optionsClass I applications.Compliant with UL 325 and 991. (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment protection devices need to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)*Dimensions (operator only): 5.13 "W x 5.25 "H x 16"L.Actuator main arm: 17.5" in length, with a total Height of 6.5" including the arm drive bolt.Dimensions (120 Volt deluxe control box): 14.5 "W x 24 "H x 4.25 "DDimensions (120 Volt standard control box): 12.5 "W x 16.5 "H x 4.25 "DDimensions (Solar control box): 13 "W x 21 "H x 8 "D
