24V Insulated SPST Solenoid
24V Insulated SPST Solenoid
SKU:CVP-f51cf2
Reliable 24V Insulated SPST Solenoid for efficient remote-acting switch needs, with durable construction and 200A current capacity.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
24V Insulated SPST Solenoid
$89.99
Quantity: 1
Claim Your Seller Account
24V Insulated SPST Solenoid
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

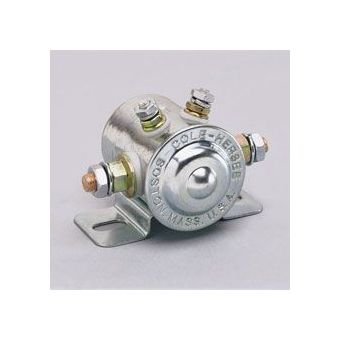

The 24V Insulated Continuous Duty Single Pole Single Throw (SPST) Solenoid from the CVP Solenoids line is a reliable solution for remote-acting switch needs in various applications. This solenoid features a robust construction with a Plated Steel housing, Polyvinyl Chloride (PVC) coating, and high-quality Silver contact material. With a 200A current capacity and 24V DC voltage, it ensures efficient performance and durability. The included Hex nuts and lock washers, along with its steel coil stud, make installation easy and secure, meeting the standards for institutional procurement.
Product Specifications
Additional Information Additional Information
Housing Materials: Plated Steel. PVC Coated. Contact Materials: Silver. Contact Stud Material: Silver. Contact Stud Threads: 5/16-24 Threads. Hex nuts and lock washers included. Coil Stud Material: Steel Coil Stud Threads: 10-32. Hex nuts and lock washers
Specifications Bracket Mounting Hole Dimensions
5/16 x 19/32 in | 7.9 x 15.1 mm
Specifications Coating
Polyvinyl Chloride (PVC)
Specifications Coil Stud Material
Steel
Specifications Coil Stud Thread Size
10-32 in
Specifications Contacts
Normally Open (NO)
Specifications Contact Material
Silver
Specifications Contact Stud Material
Silver
Specifications Contact Stud Thread Size
5/16-24 in
Specifications Current
200 A | 65 A | 85 A
Specifications Direct Current Dc Voltage
24 V
Specifications Housing
Plated Steel
Specifications Type
Single Pole Single Throw (SPST)
