24V Single Secondary Chassis Mount Power Transformer
24V Single Secondary Chassis Mount Power Transformer
SKU:POW-20b4b6
Reliable 24V power supply transformer for diverse circuit applications. Center tap contact type, compact design.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
24V Single Secondary Chassis Mount Power Transformer
$39.99
Quantity: 1
Claim Your Seller Account
24V Single Secondary Chassis Mount Power Transformer
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience reliable power supply with our 24V Single Secondary Chassis Mount Power Transformer. Ideal for transformer, rectifier, or filter circuits, this transformer features a center tap contact type with a primary voltage of 115V. It offers precise secondary voltages for control, filament, and low-level signaling. With a sturdy X case type and compact size, it is designed for easy mounting and efficient performance in various applications.
Product Specifications
Specifications Case Type
X
Specifications Connections
Leads

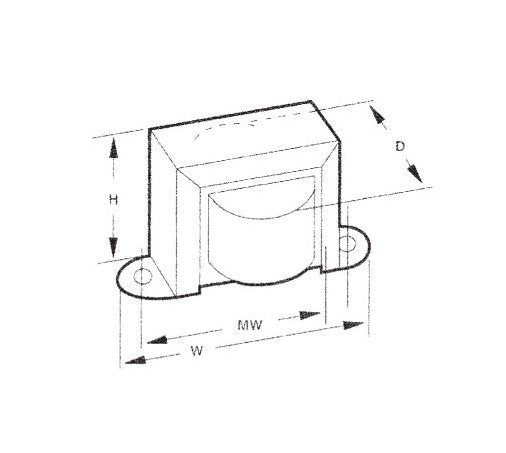

Specifications Depth D
1 3/8 in
Specifications Height H
1 3/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
1 3/4 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Current
0.085 A
Specifications Secondary Rms Test Voltage
1,500 V
Specifications Secondary Voltage
24.0 V
Specifications Transformer Contact Type
Center Tap
Specifications Weight
0.30 lb
Specifications Width W
2 1/16 in
