24V Single Secondary Chassis Mount Power Transformers
24V Single Secondary Chassis Mount Power Transformers
SKU:POW-7a40eb
Versatile 24V Single Secondary Chassis Mount Power Transformers for various power supply applications. Compact design with high voltage testing capabilities.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
24V Single Secondary Chassis Mount Power Transformers
$29.99
Quantity: 1
Claim Your Seller Account
24V Single Secondary Chassis Mount Power Transformers
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

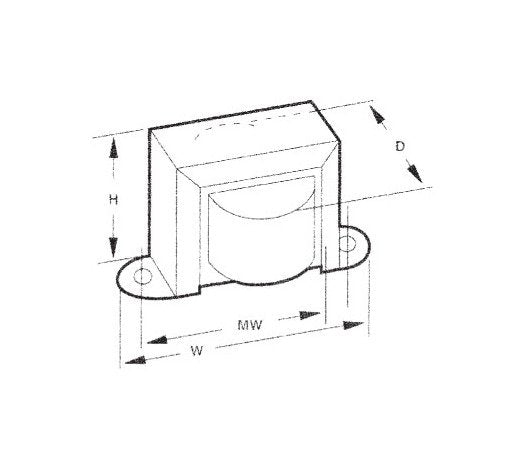

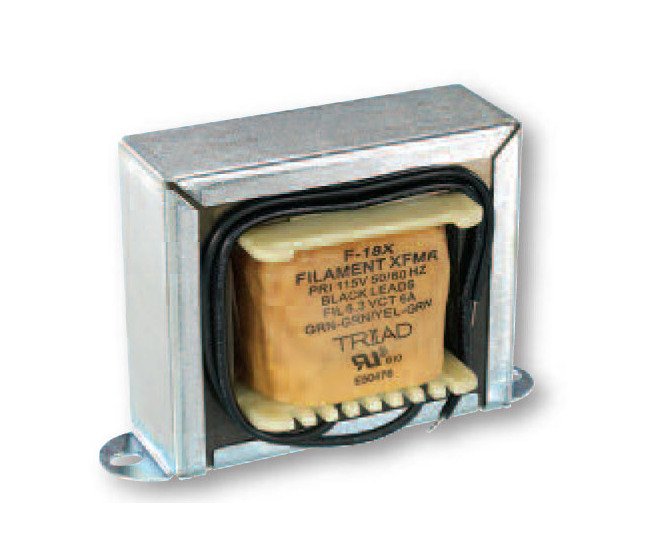

The 24V Single Secondary Chassis Mount Power Transformers from Triad are versatile transformers suitable for direct use or in transformer, rectifier, or filter circuits. With a secondary voltage of 24.0 V and a secondary current of 0.085 A, these transformers feature a Center Tap contact type. They offer primary voltage options of 115 V or 230 V, compatible with both 50 Hz and 60 Hz frequencies. Tested with a secondary RMS test voltage of 1,500 V, these transformers come in a compact X case type with lead connections. Measuring 1 3/16" in height, 2 1/16" in width, and 1 3/8" in depth, they weigh 0.30 lb and have standard mounting dimensions for easy installation.
Product Specifications
Specifications Case Type
X
Specifications Connections
Leads
Specifications Depth D
1 3/8 in
Specifications Height H
1 3/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
1 3/4 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Current
0.085 A
Specifications Secondary Rms Test Voltage
1,500 V
Specifications Secondary Voltage
24.0 V
Specifications Transformer Contact Type
Center Tap
Specifications Weight
0.30 lb
Specifications Width W
2 1/16 in
