24V Switch Mode Wall Plug-In Power Supply
24V Switch Mode Wall Plug-In Power Supply
SKU:WAL-e60287
Efficient 24V switch mode wall plug-in power supply for stable and safe performance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
24V Switch Mode Wall Plug-In Power Supply
$29.99
Quantity: 1
Claim Your Seller Account
24V Switch Mode Wall Plug-In Power Supply
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

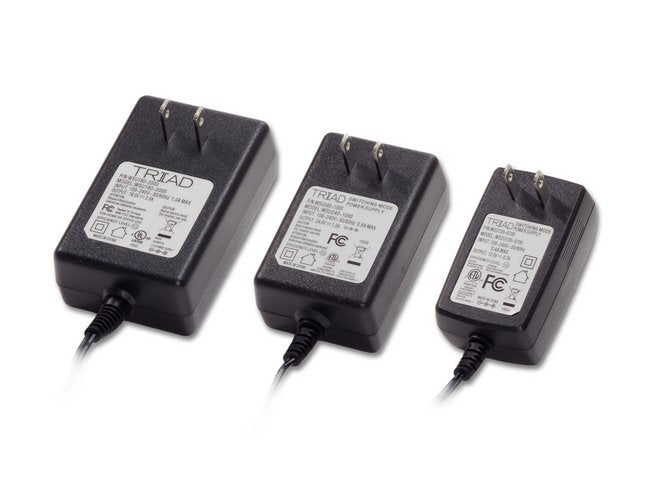

The 24V Switch Mode Wall Plug-In Power Supply offers a convenient and efficient power source for various devices. Designed to reduce noise levels, size, and weight, it eliminates the need for internal cooling devices. With regulated output voltage and a range of popular voltages available, this power supply ensures stable performance. Enclosed for tamper prevention, it meets EIAS 2007 energy efficiency requirements. Ideal for sensitive circuits, this compact power source delivers a safe lower output to your end product.
Product Specifications
Case Dimensions Depth D
1.37 in | 34.80 mm
Case Dimensions Height H
2.67 in | 67.70 mm
Case Dimensions Width W
1.81 in | 45.90 mm

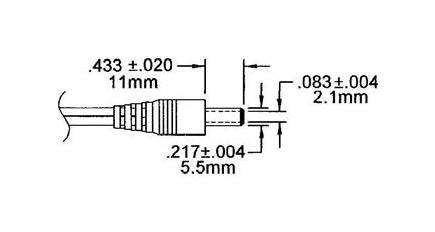

Output Plug Dimensions Inside Diameter Id
0.083±0.004 in | 2.1 mm
Output Plug Dimensions Length L
0.433±0.020 in | 11 mm
Output Plug Dimensions Outside Diameter Od
0.217±0.004 in | 5.5 mm
Specifications 2007 Eisa Efficiency
VI
Specifications Input Operating Frequency
50 Hz | 60 Hz
Specifications Input Voltage Ac
100 to 240 V
Specifications Maximum Power
12.00 W
Specifications Output Current
0.50 A
Specifications Output Current Dc
0.5 A
Specifications Output Voltage Dc
24.0 V
Specifications Polarity Center
Positive
Specifications Type
Switchmode
