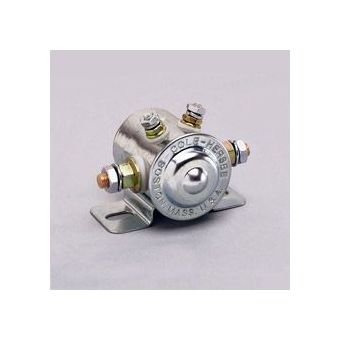

24V Voltage Insulated Solenoid - CVP Series
24V Voltage Insulated Solenoid - CVP Series
SKU:CVP-542a24
High-performance 24V Insulated Solenoid for demanding applications.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
24V Voltage Insulated Solenoid - CVP Series
$69.99
Quantity: 1
Claim Your Seller Account
24V Voltage Insulated Solenoid - CVP Series
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 24V Voltage Insulated Intermittent Duty Single Pole Single Throw (SPST) Solenoid from the CVP Solenoids line is engineered to meet the stringent demands of both consumer and institutional applications. With a robust construction featuring plated steel housing and PVC coating, copper contacts, and precise terminal threading, this solenoid ensures reliable performance under varying conditions. Operating at 24V direct current (DC) with a Make Ampere rating of up to 750A and Break Current up to 100A, it excels in remote-acting switch applications where durability and efficiency are paramount.
Product Specifications
Additional Information Additional Information
Housing Materials: Phenolic/Plated Steel. PVC Coated. Contact Materials: Copper. Contact Threads: 5/16-24 Threads. Hex nuts and lock washers included. Terminal Material: Copper. Terminal Threads: 10-32. Hex nuts and lock washers included. Bracket mounting
Specifications Bracket Mounting Hole Dimensions
5/16 x 19/32 in | 7.9 x 15.1 mm
Specifications Break Current
65 A | 100 A
Specifications Coating
Polyvinyl Chloride (PVC)
Specifications Contacts
Normally Open (NO)
Specifications Contact Material
Copper
Specifications Contact Thread Size
5/16-24 in
Specifications Direct Current Dc Voltage
24 V
Specifications Housing
Plated Steel
Specifications Make Ampere
120 A | 750 A
Specifications Terminal Material
Copper
Specifications Terminal Thread
10-32 in
Specifications Type
Single Pole Single Throw (SPST)
