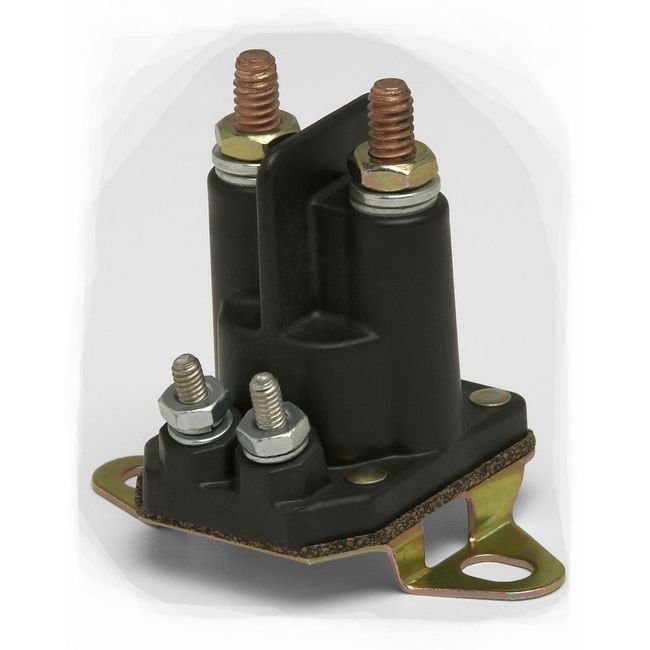

24V Voltage Insulated SPST Solenoid
24V Voltage Insulated SPST Solenoid
SKU:CVP-aa7bc8
Reliable 24V SPST Solenoid with Glass Filled Nylon housing, Copper & Silver contacts. Ideal for critical applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
24V Voltage Insulated SPST Solenoid
$59.99
Quantity: 1
Claim Your Seller Account
24V Voltage Insulated SPST Solenoid
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 24V Voltage Insulated Continuous Duty SPST Solenoid from the CVP Solenoids product line is a reliable solution for various applications. With a sturdy Glass Filled Nylon housing and high-quality Copper and Silver contact materials, this solenoid ensures durability and efficient performance. It features a 5/16-24 inch Contact Stud Thread Size and 10-32 inch Coil Stud Thread Size for secure connections. Ideal for government and institutional procurement, this solenoid meets industry standards for voltage, current, and circuitry, making it a trusted choice for critical systems.
Product Specifications
Additional Information Additional Information
Housing Materials: Glass filled Nylon. Contact Materials: Silver, Copper. Contact Stud Material: Copper. Contact Stud Threads: 5/16-24. Threads hex nuts and lock washers included. Coil Stud Material: Steel. Coil Stud Threads: 10-32. Hex nuts and lock wash
Specifications Bracket Mounting Hole Dimensions
5/16 x 19/32 in | 7.9 x 15.1 mm
Specifications Coil Stud Material
Steel
Specifications Coil Stud Thread Size
10-32 in
Specifications Contacts
Normally Open (NO)
Specifications Contact Material
Copper | Silver
Specifications Contact Stud Material
Copper
Specifications Contact Stud Thread Size
5/16-24 in
Specifications Current
100 A | 225 A
Specifications Direct Current Dc Voltage
24 V
Specifications Housing
Glass Filled Nylon
Specifications Type
Single Pole Single Throw (SPST)
