24VAC 500mA Wall Plug-In Power Supply with Pass Through Ground
24VAC 500mA Wall Plug-In Power Supply with Pass Through Ground
SKU:WAL-53f09d
Reliable 24VAC 500mA power supply with pass through ground. Meets UL/cUL standards for safety and quality.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

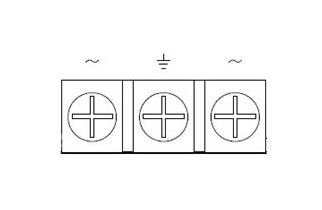

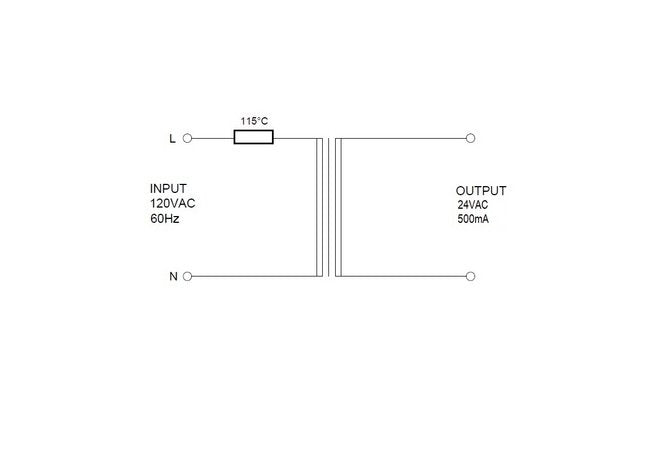

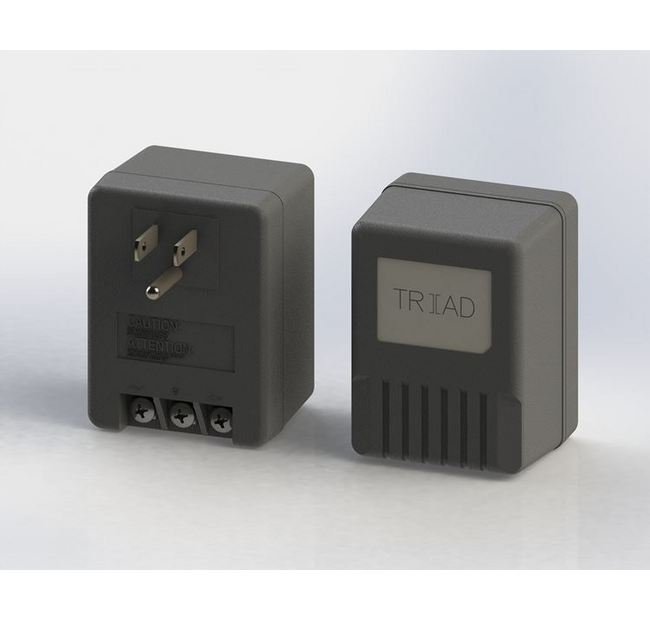

The 24VAC 500mA Wall Plug-In Power Supply is a reliable and efficient solution for powering various devices. With primary input voltage of 120VAC, it offers a secondary output voltage of 24VAC with a current rating of 500mA. This power supply meets UL and cUL standards, ensuring safety and quality. Its compact design with screw terminals and pass through ground feature makes installation easy and secure. Ideal for both consumer and institutional use, this power supply is suitable for a wide range of applications.
Product Specifications
Mechanical Parameters Case Type
Thermoplastic Molded Enclosure
Specifications 2007 Eisa Efficiency
VI
Specifications Average Efficiency
82.96 %

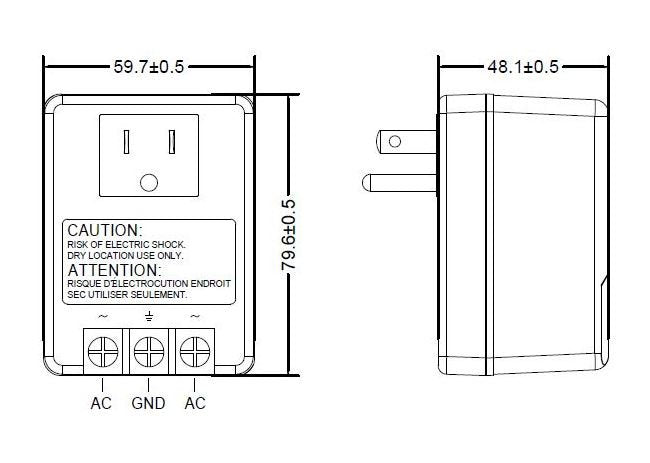

Specifications Depth
48.1 mm
Specifications Height
79.6 mm
Specifications Input Operating Frequency
60 Hz
Specifications Input Plug
North America
Specifications Intended Applications
External Power Source
Specifications Length
59.7 mm
Specifications Maximum Temperature Rise At Rated Load
30 ºC
Specifications Maximum Temperature Rise On Enclosure Surface
45 ºC
Specifications Mounting Configuration
Wall Plug-In
Specifications No Load Power Stand By
⤠0.21 W
Specifications Operating Temperature Range
-10 to +40 ºC
Specifications Output Type
AC
Specifications Output Voltage
24.0 V
Specifications Power Supply Ul Rating
Class 2
Specifications Primary Excitation Current
< 4 mA
Specifications Primary Input Voltage Ac
120 V
Specifications Secondary No Load Reference Voltage Ac
< 29.5 V
Specifications Secondary Output Current Ac
500 mA
Specifications Secondary Output Voltage Ac At Secondary Rated Cu
24 V
Specifications Stock
Yes
Specifications Tolerance For Secondary Output Voltage Ac
± 5 %
