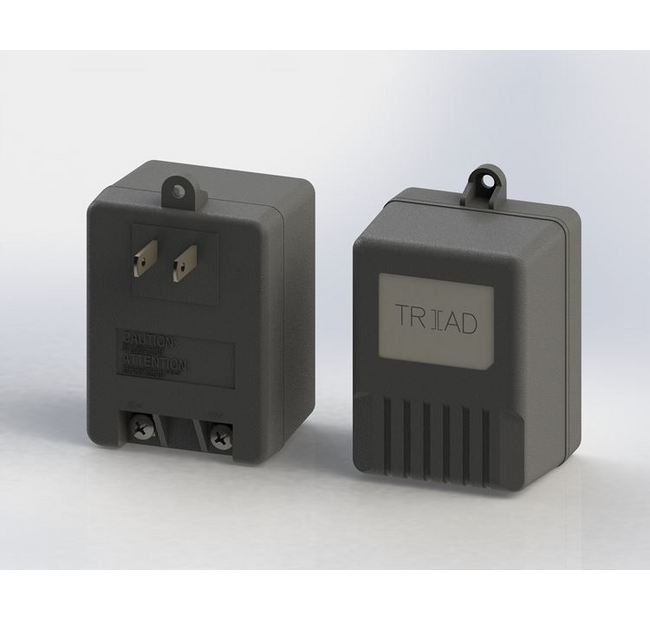

24VAC 500mA Wall Plug-In Power Supply with Screw Terminals and Mounting Tab
24VAC 500mA Wall Plug-In Power Supply with Screw Terminals and Mounting Tab
SKU:WAL-ee2491
Efficient 24VAC 500mA power supply with UL Level VI certification for reliable performance.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
24VAC 500mA Wall Plug-In Power Supply with Screw Terminals and Mounting Tab
$39.99
Quantity: 1
Claim Your Seller Account
24VAC 500mA Wall Plug-In Power Supply with Screw Terminals and Mounting Tab
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

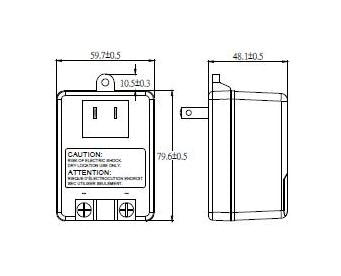

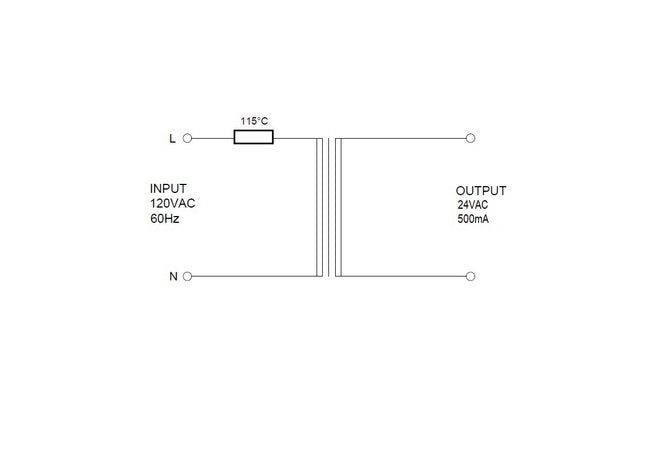

The 24VAC 500mA Wall Plug-In Power Supply is designed for efficient power output, with primary input voltage of 120VAC and operating frequency of 60Hz. Featuring UL Level VI certification, this power supply ensures high performance with secondary output voltage of 24VAC at 500mA. With temperature rise limited to 30°C at rated load, this power supply is compact with dimensions of 79.6mm x 59.7mm x 48.1mm. Suitable for external power source applications, it meets Class 2 UL rating, ensuring safety and reliability.
Product Specifications
Mechanical Parameters Case Type
Thermoplastic Molded Enclosure
Specifications 2007 Eisa Efficiency
VI
Specifications Average Efficiency
82.96 %
Specifications Depth
48.1 mm
Specifications Height
79.6 mm
Specifications Input Operating Frequency
60 Hz
Specifications Input Plug
North America
Specifications Intended Applications
External Power Source
Specifications Length
59.7 mm
Specifications Maximum Temperature Rise At Rated Load
30 ºC
Specifications Maximum Temperature Rise On Enclosure Surface
45 ºC
Specifications Mounting Configuration
Wall Plug-In
Specifications No Load Power Stand By
⤠0.21 W
Specifications Operating Temperature Range
-10 to +40 ºC
Specifications Output Type
AC
Specifications Output Voltage
24.0 V
Specifications Power Supply Ul Rating
Class 2
Specifications Primary Excitation Current
< 4 mA
Specifications Primary Input Voltage Ac
120 V
Specifications Secondary No Load Reference Voltage Ac
< 29.5 V
Specifications Secondary Output Current Ac
500 mA
Specifications Secondary Output Voltage Ac At Secondary Rated Cu
24 V
Specifications Stock
No
Specifications Tolerance For Secondary Output Voltage Ac
± 5 %
