24VAC Wall Plug-In Power Supply, 500mA cULus Level VI
24VAC Wall Plug-In Power Supply, 500mA cULus Level VI
SKU:WAL-b5bb86
Versatile 24VAC Wall Plug-In Power Supply with 500mA output, Class 2 UL rating, and Level VI efficiency standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
24VAC Wall Plug-In Power Supply, 500mA cULus Level VI
$24.99
Quantity: 1
Claim Your Seller Account
24VAC Wall Plug-In Power Supply, 500mA cULus Level VI
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

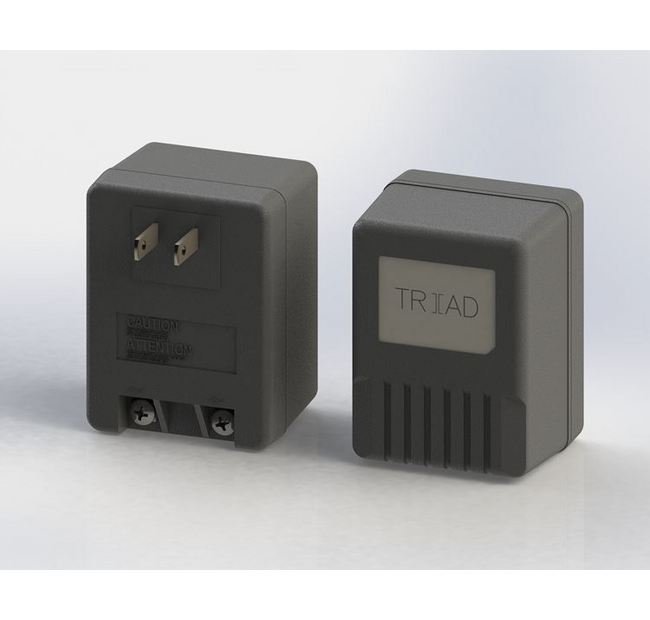

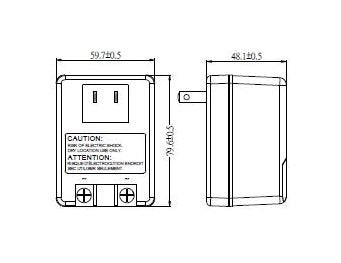

The 24VAC Wall Plug-In Power Supply is a versatile solution for both consumer and institutional buyers. With a primary input voltage of 120VAC and an operating frequency of 60Hz, this power supply delivers a precise secondary output voltage of 24VAC at 500mA. Meeting Class 2 UL ratings, this power supply ensures safety and reliability in external power applications. Its compact dimensions of 79.6mm x 59.7mm x 48.1mm make it ideal for wall plug-in installations. With an average efficiency of 82.96% and compliance with Level VI efficiency standards, this power supply is an energy-efficient choice for various electronic devices.
Product Specifications
Mechanical Parameters Case Type
Thermoplastic Molded Enclosure
Specifications 2007 Eisa Efficiency
VI
Specifications Average Efficiency
82.96 %
Specifications Depth
48.1 mm
Specifications Height
79.6 mm
Specifications Input Operating Frequency
60 Hz
Specifications Input Plug
North America
Specifications Intended Applications
External Power Source
Specifications Length
59.7 mm
Specifications Maximum Temperature Rise At Rated Load
30 ºC
Specifications Maximum Temperature Rise On Enclosure Surface
45 ºC
Specifications Mounting Configuration
Wall Plug-In
Specifications No Load Power Stand By
⤠0.21 W
Specifications Operating Temperature Range
-10 to +40 ºC
Specifications Output Type
AC
Specifications Output Voltage
24.0 V
Specifications Power Supply Ul Rating
Class 2
Specifications Primary Excitation Current
< 4 mA
Specifications Primary Input Voltage Ac
120 V
Specifications Secondary No Load Reference Voltage Ac
< 29.5 V
Specifications Secondary Output Current Ac
500 mA
Specifications Secondary Output Voltage Ac At Secondary Rated Cu
24 V
Specifications Stock
No
Specifications Tolerance For Secondary Output Voltage Ac
± 5 %
