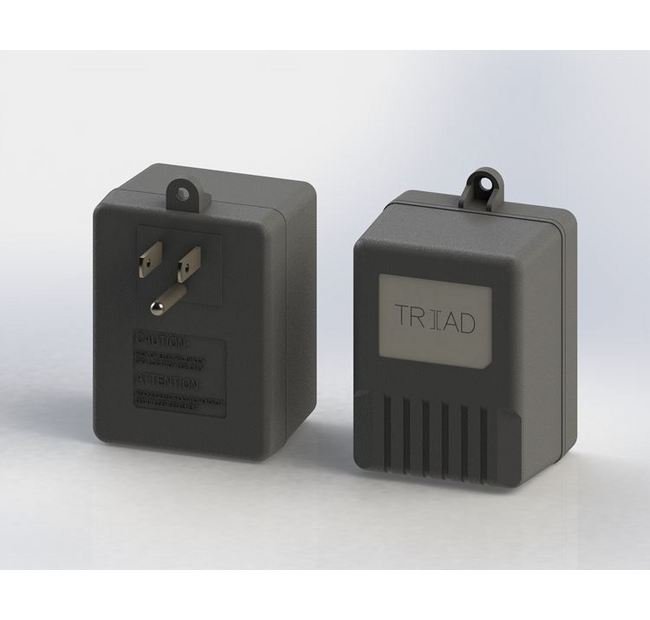

24VAC Wall Plug-In Power Supply, Level VI, UL Certified
24VAC Wall Plug-In Power Supply, Level VI, UL Certified
SKU:WAL-434e44
Power your devices with confidence using our Level VI 24VAC Wall Plug-In Power Supply, UL certified for safety and efficiency.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
24VAC Wall Plug-In Power Supply, Level VI, UL Certified
$29.99
Quantity: 1
Claim Your Seller Account
24VAC Wall Plug-In Power Supply, Level VI, UL Certified
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

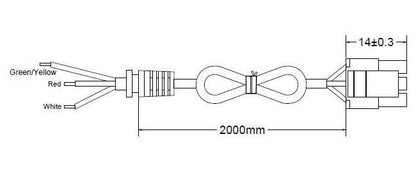

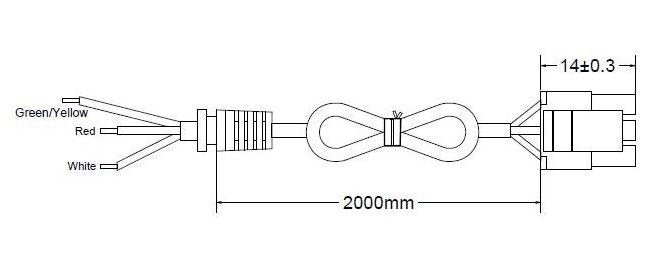

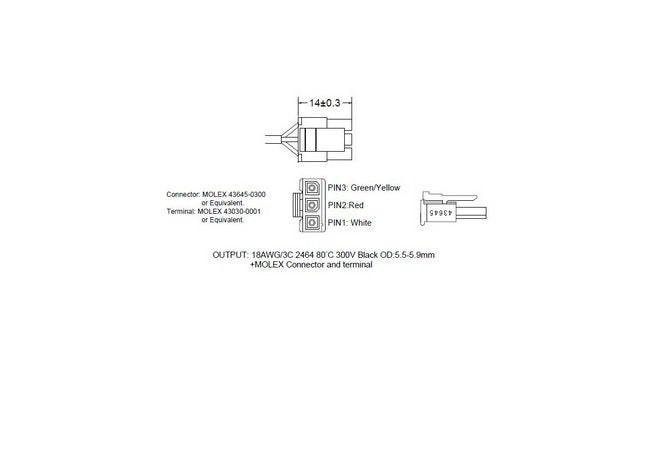

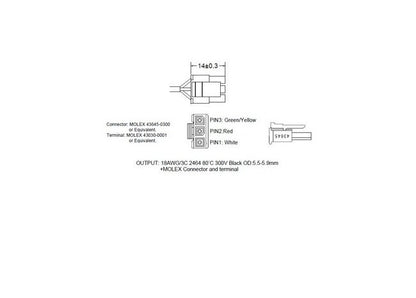

The 24VAC Wall Plug-In Power Supply is a reliable and efficient solution for powering various devices. With a power output of 24VAC @ 500mA, this UL certified supply ensures safety and quality. It features a 2-meter cord, 3 terminal Molex connector with pass-through ground, and a convenient mounting tab for easy installation. Designed to meet Level VI efficiency standards, this power supply is ideal for both consumer and institutional applications, offering stable power delivery with minimal energy consumption.
Product Specifications
Mechanical Parameters Case Type
Thermoplastic Molded Enclosure
Mechanical Parameters Minimum Output Cord Length
6 ft
Mechanical Parameters Output Cord Size
24 AWG
Specifications 2007 Eisa Efficiency
VI
Specifications Average Efficiency
82.96 %

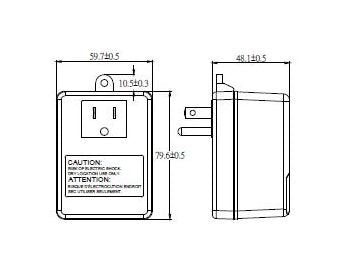

Specifications Depth
48.1 mm
Specifications Height
79.6 mm
Specifications Input Operating Frequency
60 Hz
Specifications Input Plug
North America
Specifications Intended Applications
External Power Source
Specifications Length
59.7 mm
Specifications Maximum Temperature Rise At Rated Load
30 ºC
Specifications Maximum Temperature Rise On Enclosure Surface
45 ºC
Specifications Mounting Configuration
Wall Plug-In
Specifications No Load Power Stand By
⤠0.21 W
Specifications Operating Temperature Range
-10 to +40 ºC
Specifications Output Type
AC
Specifications Output Voltage
24.0 V
Specifications Power Supply Ul Rating
Class 2
Specifications Primary Excitation Current
< 4 mA
Specifications Primary Input Voltage Ac
120 V
Specifications Secondary No Load Reference Voltage Ac
< 29.5 V
Specifications Secondary Output Current Ac
500 mA
Specifications Secondary Output Voltage Ac At Secondary Rated Cu
24 V
Specifications Stock
No
Specifications Tolerance For Secondary Output Voltage Ac
± 5 %
