25,000 cP UV/Visible Light Electronic Potting Adhesive
25,000 cP UV/Visible Light Electronic Potting Adhesive
SKU:ELE-2cb79d
Rapidly cure UV/Visible light adhesive for electronic potting, offers excellent adhesion & fast tack-free cures.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
25,000 cP UV/Visible Light Electronic Potting Adhesive
$39.99
Quantity: 1
Claim Your Seller Account
25,000 cP UV/Visible Light Electronic Potting Adhesive
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

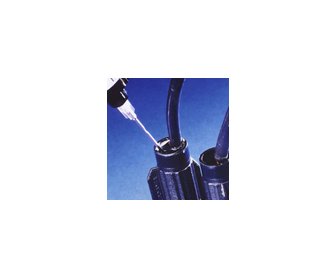

The 25,000 Centipoise (cP) Nominal Viscosity Electronic Potting Adhesive from Dymax® features a multi-cure formula that rapidly cures with UV/Visible light exposure. With a secondary heat-cure or activator-cure function, this adhesive is ideal for potting connectors, thermal switches, sensors, and tamper-proofing applications. Providing excellent adhesion to various substrates including ABS, filled nylon, glass, and metal, this halogen-free adhesive offers fast tack-free cures in 10-30 seconds.
Product Specifications
Applications 0
Potting | Sealing
Specifications Durometer Hardness
D75
Specifications Halogen Free
Yes
Specifications Nominal Viscosity
25,000 cP
Specifications Note For Ultraviolet Uv Cure Speed And Depth
UV cure speed depends on the intensity reaching the surface of the resin. Cure speed was measured at an intensity of 175 mW/cm2.
Specifications Recommended Substrates
Acrylonitrile Butadiene Styrene (ABS) | Filled Nylon | Glass (GL) | Metal
Specifications Ultraviolet Uv Cure Depth
6.4 mm | 0.25 in
Specifications Ultraviolet Uv Cure Speed
30 seconds
