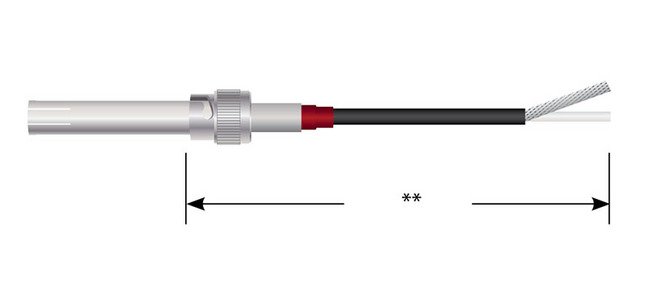

25 kVDC Single-Ended Bayonet High Voltage Cable Assembly
25 kVDC Single-Ended Bayonet High Voltage Cable Assembly
SKU:HIG-5bfaea
High-quality 25 kVDC Single-Ended Bayonet Cable Assembly for reliable high voltage applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
25 kVDC Single-Ended Bayonet High Voltage Cable Assembly
$129.99
Quantity: 1
Claim Your Seller Account
25 kVDC Single-Ended Bayonet High Voltage Cable Assembly
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 521 SL Series Cable Assembly is a high-quality solution for high voltage applications, featuring recessed contacts for enhanced user safety. With a voltage rating of 25 kVDC at 70,000 ft and a test voltage of 41 kVDC, this assembly ensures reliable performance even in demanding conditions. The bayonet coupling style, brass coupling nut material, and nickel finish provide durability and secure connections. Operating in a wide temperature range of -40 to 85°C, this cable assembly meets stringent industry standards for safety and performance.
Product Specifications
Coupling Nut Properties Bayonet Coupling Nut Finish
Nickel
Coupling Nut Properties Bayonet Coupling Nut Material
Brass
Specifications Altitudereduced Pressure Rating
Sea Level
Specifications Assembly Type
Single-Ended Plug Cable Assembly
Specifications Braid Termination
Crimp
Specifications Coupling Style
Bayonet
Specifications Current Rating
20 A
Specifications Export Classification
TBD
Specifications Operating Temperature
-40 to 85 ºC
Specifications Plug Contact Materialfinish
BeCu/Au
Specifications Plug Insulator Material
Plastic
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
521 SL
Specifications Test Voltage 70000 Ft
41
Specifications Test Voltage At Sea Level
28 kVDC
Specifications Voltage Rating
20 kVDC
Specifications Wire Insulation
PE
Specifications Wire Type
Shielded
