25 Series Edge Mount Circuit Board Holder

Name: 25 Series Edge Mount Circuit Board Holder
Brand: All Electronics Hardware
SKU: 01C-c1ad6e
Price: 14.99 USD
Availability: OutOfStock

SKU:01C-c1ad6e

Secure and support edge mount circuit boards effortlessly with the 25 Series Edge Mount Holder. Durable Nylon 66 construction, ASTM & RoHS compliant, and versatile dimensions for precise installations.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 25 Series Edge Mount Circuit Board Holder is a versatile solution for securing edge mount circuit boards without the need for board holes. Made from durable Nylon 66 UL94V-2 material (UL94V-0 option available), this product offers a secure grip and optimal support. With ASTM and RoHS compliance, a temperature range of -40 to 185F, and UL File specified, this circuit board support ensures reliability and safety. The dimensions and mounting hole diameter cater to precise requirements, providing a stable and efficient mounting solution for various applications.

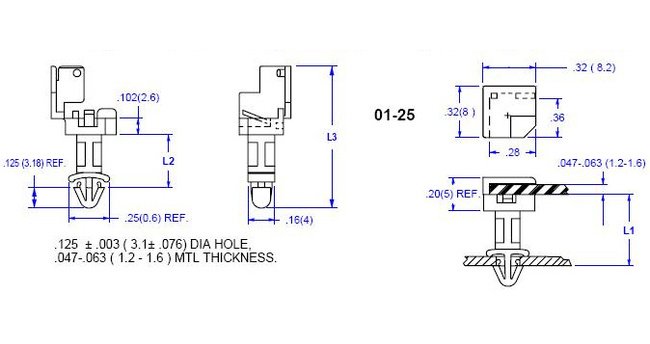

Product Specifications

Specifications Color

White

Specifications Dim L1

.315 (8.0) inches (mm)

Specifications Dim L2

.213 (5.4) inches (mm)

Specifications Dim L3

.654 (16.6) inches (mm)

Specifications Material Code

UL94V-0

Specifications Mounting Hole Diameter

.126 (3.2) inches (mm)

Specifications Panel Thickness

.047 - .063 (1.2 - 1.6) inches (mm)

25 Series Edge Mount Circuit Board Holder
