25 Series Edge Mount Circuit Board Holder
25 Series Edge Mount Circuit Board Holder
SKU:01C-cc7a50
Secure and durable Edge Mount Circuit Board Holder for precise assembly of circuit boards, meets ASTM standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
25 Series Edge Mount Circuit Board Holder
$29.99
Quantity: 1
Claim Your Seller Account
25 Series Edge Mount Circuit Board Holder
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Secure your circuit boards with precision using the 25 Series Edge Mount Circuit Board Holder. Made of high-quality Nylon 66 UL94V-2 material, this edge mount holder ensures stability and durability for your electronic assemblies. With a temperature range of -40 to 185 F, this holder is suitable for a variety of environments, meeting ASTM D 4066 and PA111 standards. Packaged in sets of 500, each holder features precise dimensions and a mounting hole diameter of .126 inches for easy installation. Upgrade to UL94V-0 material by adding 'X' to the part# for enhanced fire safety. Ensure your circuit boards are securely held in place with this premium edge mount solution.

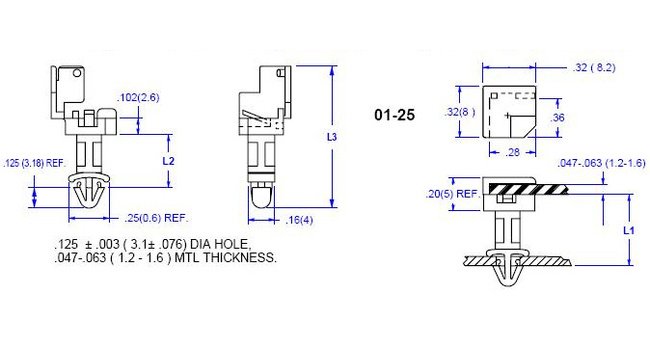

Product Specifications
Specifications Color
Natural
Specifications Dim L1
.433 (11.0) inches (mm)
Specifications Dim L2
.331 (8.4) inches (mm)
Specifications Dim L3
.772 (19.6) inches (mm)
Specifications Material Code
UL94V-2
Specifications Mounting Hole Diameter
.126 (3.2) inches (mm)
Specifications Panel Thickness
.047 - .063 (1.2 - 1.6) inches (mm)
