25 Series Edge Mount Circuit Board Holder

Name: 25 Series Edge Mount Circuit Board Holder
Brand: All Electronics Hardware
SKU: 01C-84d633
Price: 12.99 USD
Availability: OutOfStock

SKU:01C-84d633

Securely hold edge mount circuit boards without board holes with our durable and RoHS compliant 25 Series Edge Mount Holder.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 25 Series Edge Mount Circuit Board Holder is designed for securely holding edge mount circuit boards without the need for board holes. Made of high-quality Nylon 66 UL94V-2 material (UL94V-0 available), this circuit board support is RoHS compliant and meets ASTM D 4066, PA111 standards. With a temperature range of -40 to 185 F (-40 to 85C), this board holder offers reliable performance in varying conditions. The dimensions and mounting hole diameter ensure compatibility with standard circuit board specifications.

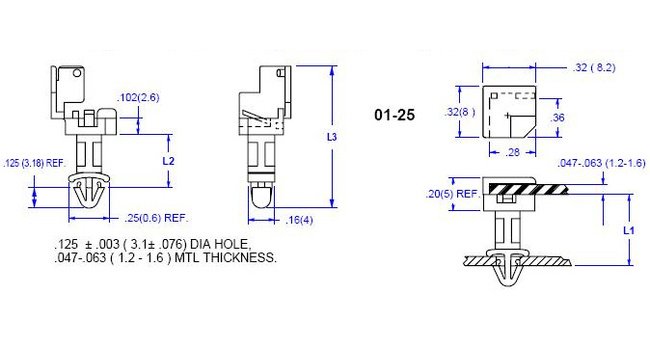

Product Specifications

Specifications Color

White

Specifications Dim L1

.630 (16.0) inches (mm)

Specifications Dim L2

.528 (13.4) inches (mm)

Specifications Dim L3

.969 (24.6) inches (mm)

Specifications Material Code

UL94V-0

Specifications Mounting Hole Diameter

.126 (3.2) inches (mm)

Specifications Panel Thickness

.047 - .063 (1.2 - 1.6) inches (mm)

25 Series Edge Mount Circuit Board Holder
