25 Series Edge Mount Circuit Board Supports
25 Series Edge Mount Circuit Board Supports
SKU:01C-45583a
Securely hold edge mount circuit boards with the 25 Series supports, featuring durable Nylon 66 UL94V-2 material and RoHS compliance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
25 Series Edge Mount Circuit Board Supports
$29.99
Quantity: 1
Claim Your Seller Account
25 Series Edge Mount Circuit Board Supports
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your circuit board installations with the 25 Series Edge Mount Circuit Board Supports. Designed for edge mount circuit boards without requiring a board hole, these holders provide secure support. Made from Nylon 66 UL94V-2 material (UL94V-0 available), ensuring durability and safety. Each pack contains 500 supports, meeting ASTM D 4066 and RoHS compliance. With a temperature range of -40 to 185°F (-40 to 85°C), these supports are reliable in various environments.

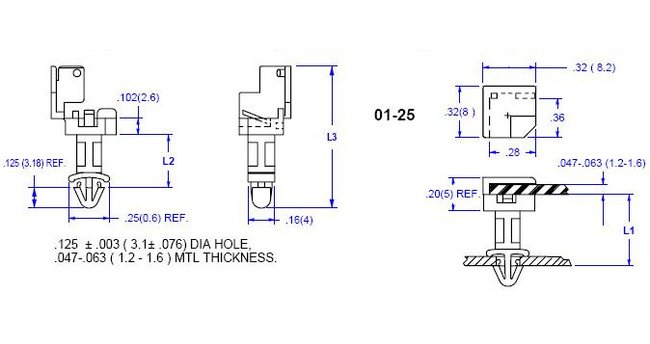

Product Specifications
Specifications Color
Natural
Specifications Dim L1
.315 (8.0) inches (mm)
Specifications Dim L2
.213 (5.4) inches (mm)
Specifications Dim L3
.654 (16.6) inches (mm)
Specifications Material Code
UL94V-2
Specifications Mounting Hole Diameter
.126 (3.2) inches (mm)
Specifications Panel Thickness
.047 - .063 (1.2 - 1.6) inches (mm)
