25 Series Edge Mount Circuit Board Supports
25 Series Edge Mount Circuit Board Supports
SKU:01C-5e42e3
Secure and durable 25 Series Edge Mount Circuit Board Supports for reliable installations. Pack of 500, RoHS compliant. Temp range: -40 to 185°F.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
25 Series Edge Mount Circuit Board Supports
$24.99
Quantity: 1
Claim Your Seller Account
25 Series Edge Mount Circuit Board Supports
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your circuit board installations with our 25 Series Edge Mount Circuit Board Supports. Designed for edge mount circuit boards without the need for board holes, these holders provide secure and reliable support. Made of Nylon 66 UL94V-2 material (UL94V-0 available), each piece is ASTM and RoHS compliant. With a temperature range of -40 to 185°F (-40 to 85°C), these supports ensure durability in various environments. Each pack contains 500 supports, offering convenience for bulk installations.

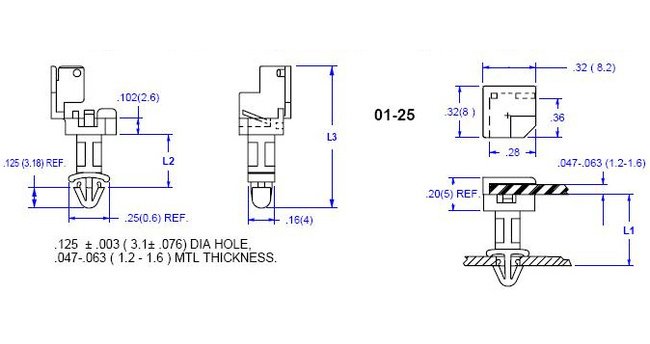

Product Specifications
Specifications Color
White
Specifications Dim L1
.433 (11.0) inches (mm)
Specifications Dim L2
.331 (8.4) inches (mm)
Specifications Dim L3
.772 (19.6) inches (mm)
Specifications Material Code
UL94V-0
Specifications Mounting Hole Diameter
.126 (3.2) inches (mm)
Specifications Panel Thickness
.047 - .063 (1.2 - 1.6) inches (mm)
