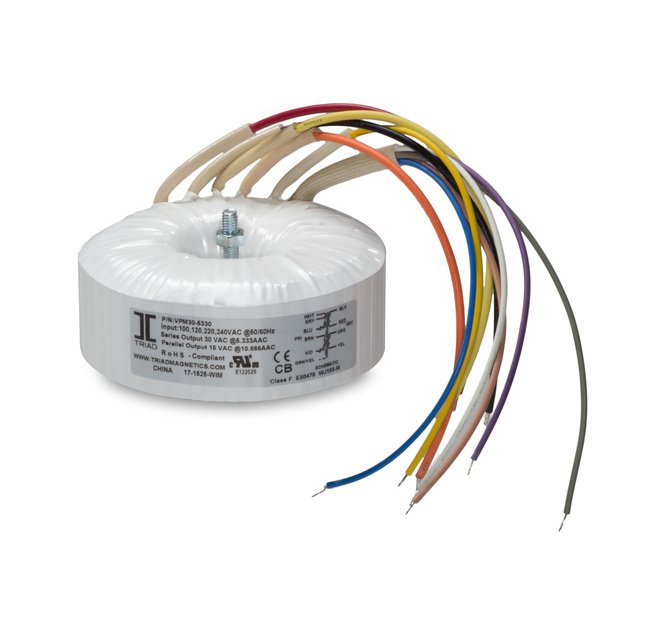

250 VA Medical Toroidal Transformer
250 VA Medical Toroidal Transformer
SKU:POW-27ed92
Reliable 250 VA Medical Toroidal Transformer with Class F insulation & CE/CRUUS compliance for safe medical applications.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
250 VA Medical Toroidal Transformer
$149.99
Quantity: 1
Claim Your Seller Account
250 VA Medical Toroidal Transformer
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 250 VA Toroidal Medical Transformer is designed for precision and reliability in medical equipment applications. With primary voltage options of 100V, 120V, 220V, or 240V and secondary configurations for parallel or series connection, this Class F insulated transformer ensures low leakage current and minimal stray fields. Meeting industry standards such as CE and CRUUS, this transformer boasts a dielectric isolation of 4kV for 60 seconds, making it safe and compliant for medical use.
Product Specifications
Note Note
Custom designs available.RoHS Compliance: As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.Upon printing, this document is considered "uncontrolled".
Specifications Connection Type
Leads
Specifications Dielectric Isolation Primary To Secondary For 60
4 kV
Specifications Electrical Rating
250 V·A
Specifications Industry Standards
CE | CRU®US
Specifications Insulation Class
Class F, 155 ºC
Specifications Maximum Height
60 mm
Specifications Nominal Primary Voltage
100 V | 120 V | 220 V | 240 V
Specifications Nominal Secondary Voltage
18 V | 36 V
Specifications Outside Diameter
123 mm
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Safety
Medical
Specifications Secondary Connection Type
Parallel | Series
Specifications Secondary Power Volts X Ampva
250 V·A
Specifications Secondary Voltage In Parallel
18 V at 13.88 A
Specifications Secondary Voltage In Series
36 V CT at 6.94 A
Specifications Regulation
6.2 %
Specifications Temperature Rise
55 ºC
Specifications Weight
2.5 kg
