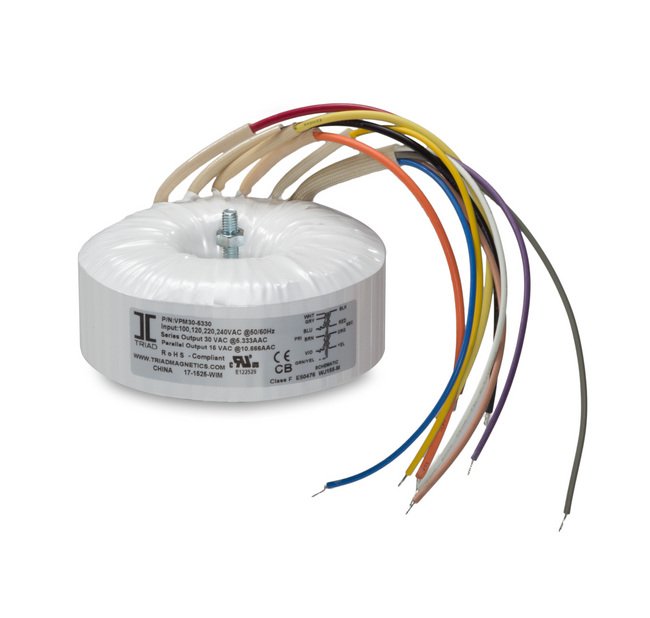

250 VA Toroidal Medical Transformer
250 VA Toroidal Medical Transformer
SKU:POW-550739
Reliable 250 VA Toroidal Medical Transformer with dual secondary connections, Class F insulation, and 4kV dielectric isolation. Ideal for medical equipment applications.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
250 VA Toroidal Medical Transformer
$149.99
Quantity: 1
Claim Your Seller Account
250 VA Toroidal Medical Transformer
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 250 VA Toroidal Medical Transformer from the VPM Series is a reliable power solution designed for medical equipment applications. With primary voltage options of 100V, 120V, 220V, or 240V and dual secondary connections for parallel or series setups, this transformer ensures efficient power distribution. It meets Class F insulation standards, offers low leakage current, and features dielectric isolation of 4kV for 60 seconds, guaranteeing safety and reliability. This transformer is compact with an outside diameter of 123mm and a weight of 2.5kg, making it ideal for various medical setups.
Product Specifications
Note Note
Custom designs available.RoHS Compliance: As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.Upon printing, this document is considered "uncontrolled".
Specifications Connection Type
Leads
Specifications Dielectric Isolation Primary To Secondary For 60
4 kV
Specifications Electrical Rating
250 V·A
Specifications Industry Standards
CE | CRU®US
Specifications Insulation Class
Class F, 155 ºC
Specifications Maximum Height
60 mm
Specifications Nominal Primary Voltage
100 V | 120 V | 220 V | 240 V
Specifications Nominal Secondary Voltage
9 V | 18 V
Specifications Outside Diameter
123 mm
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Safety
Medical
Specifications Secondary Connection Type
Parallel | Series
Specifications Secondary Power Volts X Ampva
250 V·A
Specifications Secondary Voltage In Parallel
9.0 V at 27.60 A
Specifications Secondary Voltage In Series
18 V CT at 13.8 A
Specifications Regulation
6.2 %
Specifications Temperature Rise
55 ºC
Specifications Weight
2.5 kg
