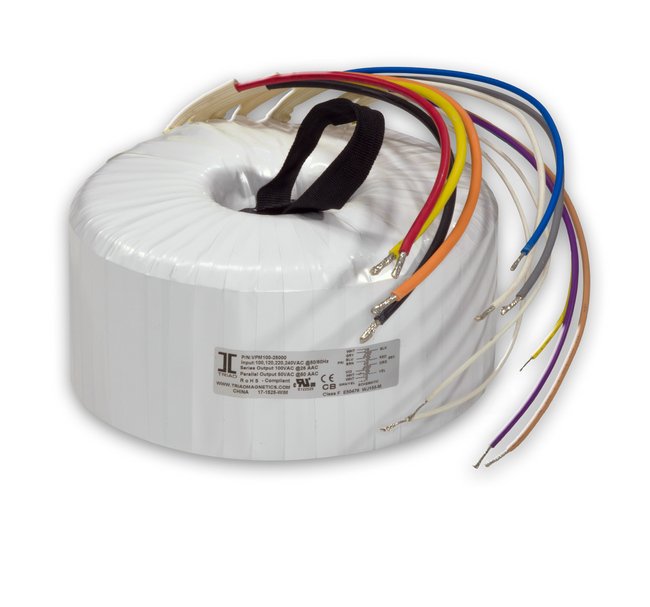

2500VA Toroidal Medical Transformer
2500VA Toroidal Medical Transformer
SKU:POW-a3cf0c
High-performance 2500VA Toroidal Medical Transformer - Ideal for medical equipment with advanced safety features and industry certifications.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
2500VA Toroidal Medical Transformer
$399.99
Quantity: 1
Claim Your Seller Account
2500VA Toroidal Medical Transformer
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 2500VA Voltage·Ampere (V·A) Power VPM Series Toroidal Medical Transformer is designed for superior performance in medical equipment applications. With primary voltage options of 100V, 120V, 220V, or 240V and dual secondary connections for parallel or series setup, this transformer ensures flexibility and reliability. It features Class F insulation, 4 KV dielectric isolation, low leakage current, and low stray fields, meeting stringent safety standards. With an electrical rating of 2500 V·A and industry certifications like CE and CRU®US, this transformer guarantees optimal power regulation and minimal temperature rise.
Product Specifications
Note Note
Custom designs available.RoHS Compliance: As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.Upon printing, this document is considered "uncontrolled".
Specifications Connection Type
Leads
Specifications Dielectric Isolation Primary To Secondary For 60
4 kV
Specifications Electrical Rating
2500 V·A
Specifications Industry Standards
CE | CRU®US
Specifications Insulation Class
Class F, 155 ºC
Specifications Maximum Height
120 mm
Specifications Nominal Primary Voltage
100 V | 120 V | 220 V | 240 V
Specifications Nominal Secondary Voltage
120 V | 240 V
Specifications Outside Diameter
215 mm
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Safety
Medical

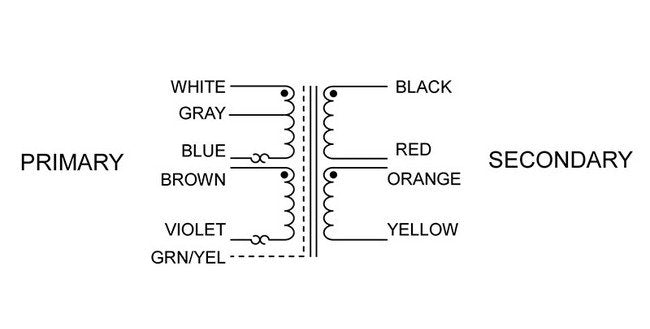

Specifications Secondary Connection Type
Parallel | Series
Specifications Secondary Power Volts X Ampva
2500 V·A
Specifications Secondary Voltage In Parallel
120 V at 21.80 A
Specifications Secondary Voltage In Series
240 V CT at 10.40 A
Specifications Regulation
1.7 %
Specifications Temperature Rise
55 ºC
Specifications Weight
21 kg
