2560-Gallon Vertical Air Receiver Tank, 165 psi MWP
2560-Gallon Vertical Air Receiver Tank, 165 psi MWP
SKU:REC-d9bdb6
Get the 2560-Gallon Vertical Air Receiver Tank for high-pressure air storage. Durable construction, 165 psi MWP.
Regular price
$2,599.99
Regular price
Sale price
$2,599.99
Unit price
per
Initiate Order
2560-Gallon Vertical Air Receiver Tank, 165 psi MWP
$2,599.99
Quantity: 1
Claim Your Seller Account
2560-Gallon Vertical Air Receiver Tank, 165 psi MWP
$2,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

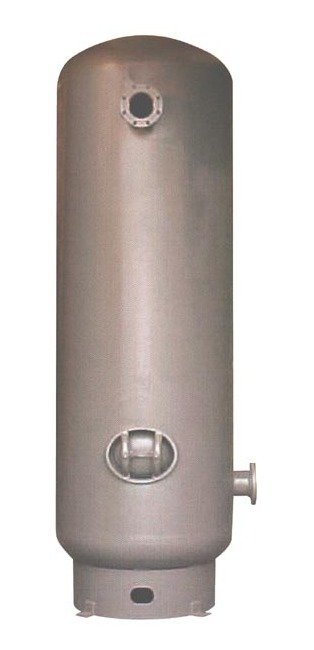

The 2560-Gallon Vertical Air Receiver Tank is designed for industrial applications requiring high-pressure air storage. With a Maximum Working Pressure (MWP) of 165 psi, this tank ensures efficient air supply for pneumatic systems. Its sturdy construction and spacious design make it suitable for heavy-duty use, offering a nominal capacity of 2560 gallons (342.25 ft³). The tank dimensions - 60.00 inches outer diameter, 228.00 inches height, and various N.P.T. openings - provide flexibility for installation. Experience reliable compressed air storage with this durable vertical receiver tank.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Financing Approve Payments
Finance with Approve Payments

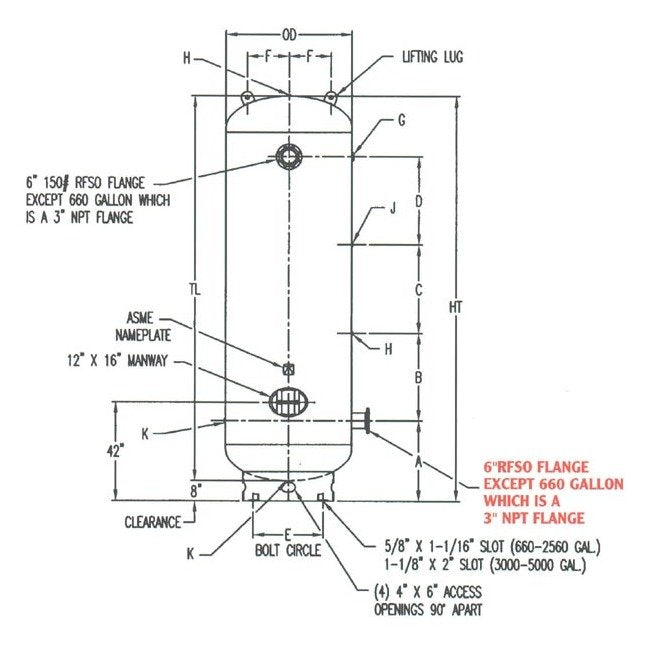

Specifications Dimension A
34.00 inches
Specifications Dimension B
56.00 inches
Specifications Dimension C
56.00 inches
Specifications Dimension D
56.00 inches
Specifications Dimension E
48.50 inches
Specifications Dimension F
20.00 inches
Specifications Ht
228.00 inches
Specifications Mawp
165 psi
Specifications Nominal Capacity
2560 gal | 342.25 ft³
Specifications Npt Opening G
3 inches
Specifications Npt Opening H
1 inches
Specifications Npt Opening J
1/4 inches
Specifications Npt Opening K
1 1/4 inches
Specifications Od
60.00 inches
Specifications Tl
220.00 inches
Specifications Tw
3750
