25A 10-14mm RST25I3 Outdoor Circular Electrical Connector
25A 10-14mm RST25I3 Outdoor Circular Electrical Connector
SKU:CIR-58d1c6
Reliable 25A connector for outdoor use, IP69 & Type 4X/6P rated. Easy to install & durable.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
25A 10-14mm RST25I3 Outdoor Circular Electrical Connector
$29.99
Quantity: 1
Claim Your Seller Account
25A 10-14mm RST25I3 Outdoor Circular Electrical Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

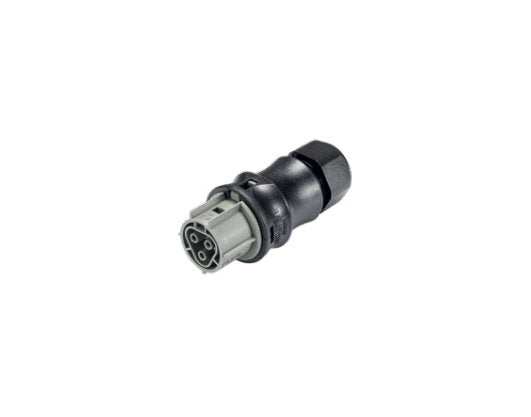

The 10 to 14 Millimeter (mm) RST25I3 Female Connector is a robust pluggable electrical connector designed for outdoor use. With a rated current of 25 A and a screw connection, this connector accommodates cable diameters from 10mm to 14mm. It meets IP69 and Type 4X / 6P protection standards, ensuring reliable performance in harsh environments. Suitable for various applications, this Wieland connector combines durability with easy installation, making it a cost-effective choice for both consumer and institutional buyers.
Product Specifications
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Concrete Gray
General Number Of Poles
3
General Type
Female
Model Connection Type
Screw Connection
Note Note
Technical details are subject to change
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
14 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
10 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
25 A
Technical Data Wire Size According To Canadian Ul Listed United
12 AWG Solid
Technical Data Wire Size According To International Electrotechn
0.75 to 6 mm²
