25A Outdoor-Rated RST25I3 Female Connector (10-14mm Diameter)

Name: 25A Outdoor-Rated RST25I3 Female Connector (10-14mm Diameter)
Brand: Wieland Electric Inc.
SKU: CIR-cb12cb
Price: 29.99 USD
Availability: OutOfStock

SKU:CIR-cb12cb

High-quality 25A female connector for outdoor use with 10-14mm cable diameter, IP69 and Type 4X/6P rated.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

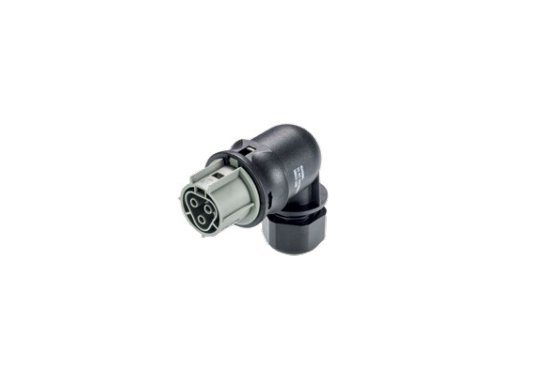

The 10 to 14 Millimeter (mm) Cable Diameter RST25I3 Female Connector is a robust pluggable electrical connector designed for outdoor applications. Manufactured by Wieland, this female connector features a concrete gray coding/contact carrier, angled 90° plug, and a secure screw connection. With a rated current of 25 A and a wide cable diameter range from 10mm to 14mm, it meets international standards for electrical connectors. The connector is IP69 and Type 4X / 6P rated for protection, ensuring reliable performance in various environments. Ideal for institutional and government procurement needs.

Product Specifications

General Angle Of Plug

Angled 90Âº

General Brands

Wieland

General Color Of Codingcontact Carrier

Concrete Gray

General Number Of Poles

General Type

Female

Model Connection Type

Screw Connection

Note Note

Technical details are subject to change

Technical Data Degree Of Protection According To Canadian Ul Lis

Type 4X / 6P

Technical Data Degree Of Protection According To International E

IP69

Technical Data Maximum Cable Diameter

14 mm

Technical Data Maximum Rated Voltage

600 V

Technical Data Minimum Cable Diameter

10 mm

Technical Data Minimum Rated Voltage

250 V | 400 V

Technical Data Rated Current

25 A

Technical Data Wire Size According To Canadian Ul Listed United

12 AWG Solid

Technical Data Wire Size According To International Electrotechn

0.75 to 6 mmÂ²
