25A RST25I3 Female Connector 6-10mm Cable Diameter
25A RST25I3 Female Connector 6-10mm Cable Diameter
SKU:CIR-bf2dfb
Reliable 25A Female Connector, 6-10mm Cable Diameter, IP69 & Type 4X/6P Protection, for Outdoor Use. Screw Connection. Meet demanding requirements.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
25A RST25I3 Female Connector 6-10mm Cable Diameter
$29.99
Quantity: 1
Claim Your Seller Account
25A RST25I3 Female Connector 6-10mm Cable Diameter
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

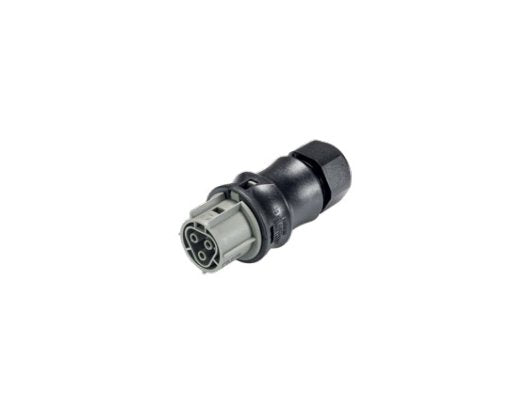

The 25A RST25I3 Female Connector with a cable diameter range of 6 to 10mm is a reliable pluggable electrical connector designed for outdoor use. Manufactured by Wieland, this concrete gray connector features a straight angle plug and a screw connection. It meets IP69 and Type 4X / 6P protection, suitable for demanding environments. With a rated voltage range of 250V to 600V and a rated current of 25A, this connector accommodates wire sizes from 0.75 to 6 mm² (IEC) and 12 AWG solid (cULus). Stay connected with quality and durability.
Product Specifications
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Concrete Gray
General Number Of Poles
3
General Type
Female
Model Connection Type
Screw Connection
Note Note
Technical details are subject to change
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Maximum Cable Diameter
10 mm
Technical Data Maximum Rated Voltage
600 V
Technical Data Minimum Cable Diameter
6 mm
Technical Data Minimum Rated Voltage
250 V | 400 V
Technical Data Rated Current
25 A
Technical Data Wire Size According To Canadian Ul Listed United
12 AWG Solid
Technical Data Wire Size According To International Electrotechn
0.75 to 6 mm²
