25A RST25I3 Male Connector 10-14mm Cable Diameter

Name: 25A RST25I3 Male Connector 10-14mm Cable Diameter
Brand: Wieland Electric Inc.
SKU: CIR-7eaff4
Price: 29.99 USD
Availability: OutOfStock

SKU:CIR-7eaff4

Reliable 25A Male Connector with IP69 Protection

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

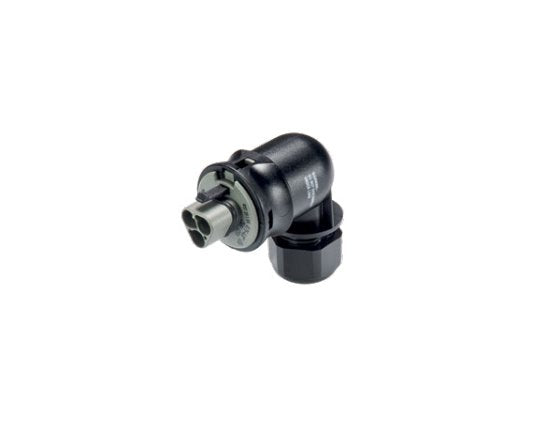

The 10 to 14 Millimeter Cable Diameter RST25I3 Male Connector is a reliable pluggable electrical connector designed for outdoor use. With a rated current of 25 A and a screw connection type, it offers a secure and durable connection for various applications. This connector meets IP69 and Type 4X / 6P protection standards according to IEC and cULus, ensuring optimal performance in challenging environments. Suitable for cable diameters ranging from 10mm to 14mm, this connector provides a versatile solution for electrical connections.

Product Specifications

General Angle Of Plug

Angled 90Âº

General Brands

Wieland

General Color Of Codingcontact Carrier

Concrete Gray

General Number Of Poles

General Type

Male

Model Connection Type

Screw Connection

Note Note

Technical details are subject to change

Technical Data Degree Of Protection According To Canadian Ul Lis

Type 4X / 6P

Technical Data Degree Of Protection According To International E

IP69

Technical Data Maximum Cable Diameter

14 mm

Technical Data Maximum Rated Voltage

600 V

Technical Data Minimum Cable Diameter

10 mm

Technical Data Minimum Rated Voltage

250 V | 400 V

Technical Data Rated Current

25 A

Technical Data Wire Size According To Canadian Ul Listed United

12 AWG Solid

Technical Data Wire Size According To International Electrotechn

0.75 to 6 mmÂ²
