25mm O-Seal Straight Thread Connector Fitting

Name: 25mm O-Seal Straight Thread Connector Fitting
Brand: Superlok-Mako Products LLC
SKU: SOS-442201
Price: 34.99 USD
Availability: OutOfStock

SKU:SOS-442201

High-quality 25mm O-Seal Connector Fitting for secure, leak-free metric tube to female thread connections. Enhances safety and productivity in industrial applications.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

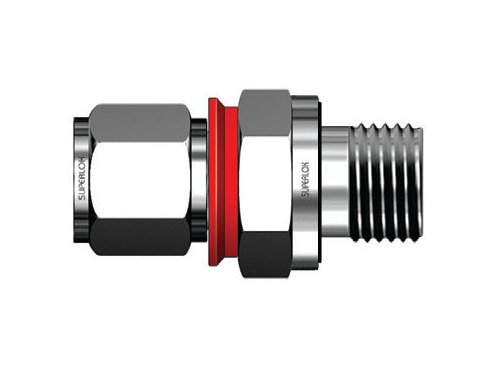

The SOSCI Series 25mm Tube Outside Diameter O-Seal Straight Thread Connector Fitting is a precision-engineered component designed to seamlessly connect metric tubes to female straight threads. Made from high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this fitting ensures a secure and leak-free connection. Its innovative design features i-Fitting® components like a built-in gap gauge that enhances installer safety, increases productivity, and reduces costs. Ideal for valve connections in high pressure and hazardous chemical environments, this fitting exceeds industry standards for performance and reliability.

Product Specifications

Features Features

i-FittingÂ® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

Note Note

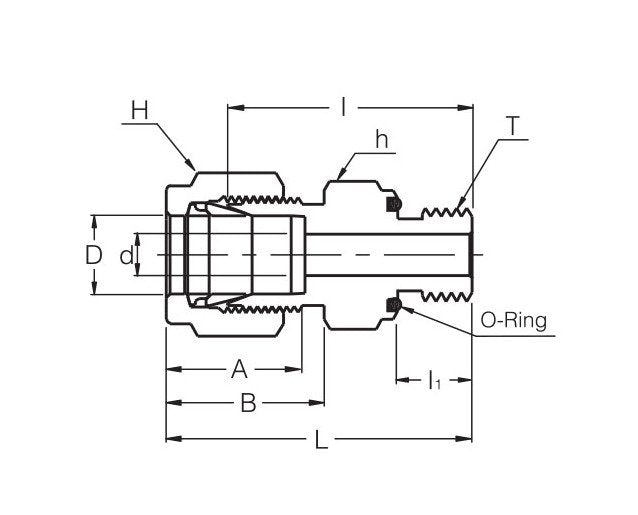

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOKÂ® nuts finger-tight, where applicable.

Technical Specs Dimension A

31.2 mm

Technical Specs Dimension B

26.4 mm

Technical Specs Dimension I

46.0 mm

Technical Specs Dimension I1

14.20 mm

Technical Specs Dimension L

58.1 mm

Technical Specs Material

Technical Specs Minimum Dimension D

21.8 mm

Technical Specs O Ring Uniform Size Number

-219

Technical Specs Standard Size

6 to 25 mm

Technical Specs Straight Thread T U

1-5/16-12 mm

Technical Specs Tube Outside Diameter D

25 mm

Technical Specs Width Across Flat H

38 mm
