25mm Pitch Acetal Closed Top Link Chain with 50mm Scoop & Left Hand Guide
25mm Pitch Acetal Closed Top Link Chain with 50mm Scoop & Left Hand Guide
SKU:CHA-47df2f
Versatile and safe 25mm chain with 50mm scoop & left guide for smooth pack-off operations.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
25mm Pitch Acetal Closed Top Link Chain with 50mm Scoop & Left Hand Guide
$399.99
Quantity: 1
Claim Your Seller Account
25mm Pitch Acetal Closed Top Link Chain with 50mm Scoop & Left Hand Guide
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

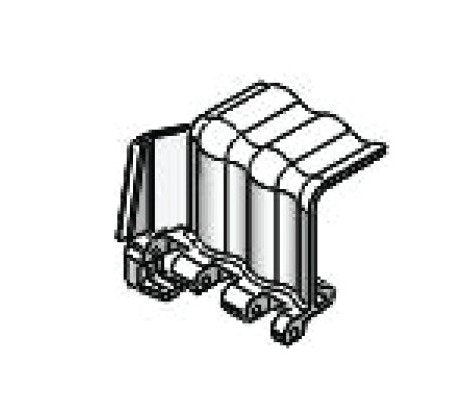

The 25mm Pitch Acetal Closed Top Link Chain with 50mm Scoop and Left Hand Side Guide is a versatile conveyor chain ideal for pack-off applications, offering smooth operation and reduced chain pull thanks to internal barrel rollers. This chain ensures operator safety with its closed carrying surface. It allows vertical bends but restricts horizontal bends, limiting conveyor speeds to 70 ft/min or slower. Designed by SpanTech®, this chain comes in various width ranges to suit different conveying needs.
Product Specifications
Additional Information Additional Information
Sometimes you need a conveyor chain with a smooth, closed carrying surface.
Chain Options Chain Options
PlainMoving Side GuidePusher CleatScoopPusher with Moving Side GuideScoop with Moving Side Guide
Options Options

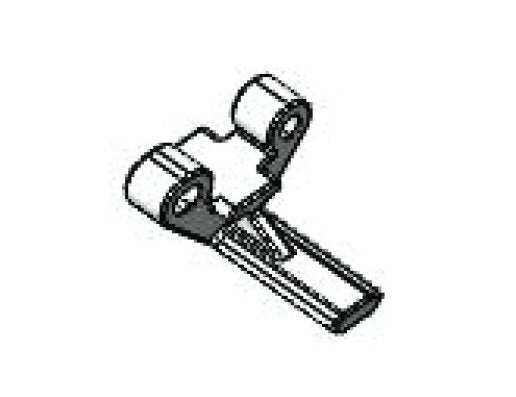

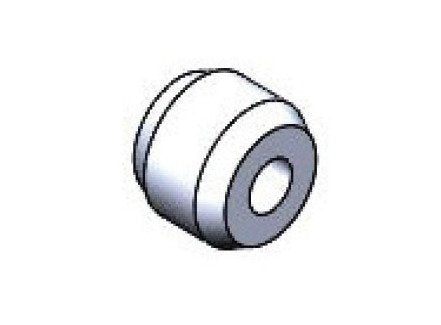

Item #: DS0060AItem Name: Internal Acetal Barrel RollerItem #: DS9964-CT-01Item Name: Return Chain Acetal Support Link
Specifications Available Width Ranges
3.76 to 46.28 in | 95.6 to 1205.6 mm
Specifications Material Options
Acetal
Specifications Moving Direction
Left Hand
Specifications Moving Side Guide Size
50 mm
Specifications Pitch Size
0.98 in | 25 mm
Specifications Safety
Smooth, closed carrying surface with no open areas offering a measure of safety perfect for operator stations.
Specifications Scoop Size
50 mm
