25mm SSWEI Series Tube Socket Weld Elbow
25mm SSWEI Series Tube Socket Weld Elbow
SKU:SSW-046d7b
High-quality 25mm elbow for metric tube connections, featuring innovative i-Fitting® technology for precise compression and increased safety in high-pressure environments.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
25mm SSWEI Series Tube Socket Weld Elbow
$34.99
Quantity: 1
Claim Your Seller Account
25mm SSWEI Series Tube Socket Weld Elbow
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

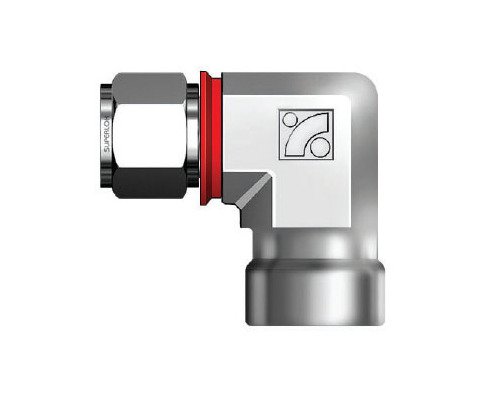

The 25mm SSWEI Series Tube Socket Weld Elbow is designed to connect metric tubes efficiently and securely. Made from high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this elbow ensures durability and corrosion resistance. Its innovative i-Fitting® components, featuring a check ring for precise compression, enhance safety in high-pressure environments. Industry-changing design, improved productivity, and cost-efficiency make it a top choice for valve connections.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

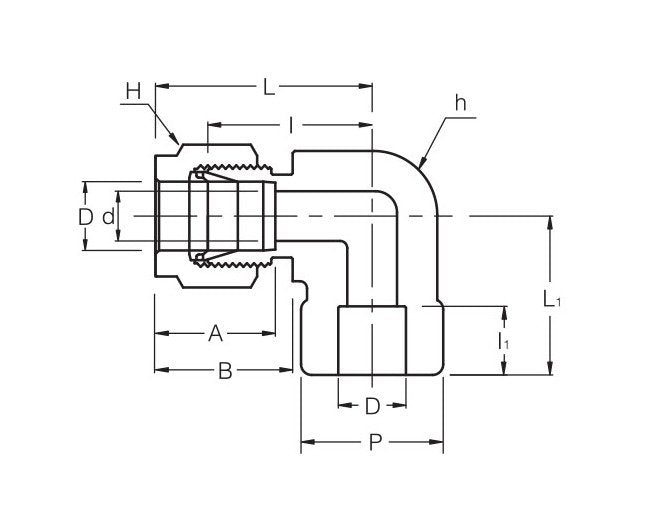

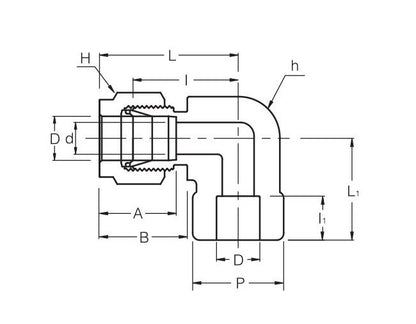

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
31.2 mm
Technical Specs Dimension B
26.4 mm
Technical Specs Dimension I
36.8 mm
Technical Specs Dimension I1
19.1 mm
Technical Specs Dimension L
49.0 mm
Technical Specs Dimension L1
36.8 mm
Technical Specs Dimension P
35.05 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
21.8 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
25 mm
Technical Specs Width Across Flat H
38.1 mm
