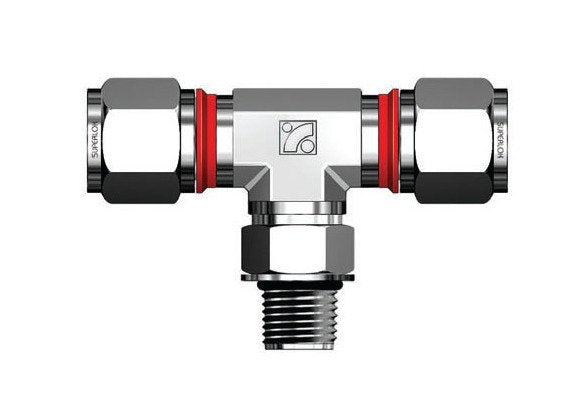

25mm Tube OD Positionable Male Branch Tee Fitting

Name: 25mm Tube OD Positionable Male Branch Tee Fitting
Brand: Superlok-Mako Products LLC
SKU: SPM-e90df2
Price: 49.99 USD
Availability: OutOfStock

SKU:SPM-e90df2

Enhance connections with this precision-made 25mm Tube OD Male Branch Tee fitting for superior safety and productivity.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SPMBTI Series 25mm Tube OD Positionable Male Branch Tee Fitting is a high-quality component that seamlessly connects metric tubes to SAE/MS straight thread boss fittings. Made from premium materials including Alloy 625, Alloy 825, Stainless Steel, and more, this fitting ensures superior performance and durability. Featuring i-Fitting® components with a built-in gap gauge for perfect compression, it enhances installer safety, productivity, and cost-efficiency in high-pressure and chemical environments. Industry-changing patented design by BMT, this fitting is versatile and reliable for valve connections.

Product Specifications

Features Features

i-FittingÂ® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

Note Note

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOKÂ® nuts finger-tight, where applicable.

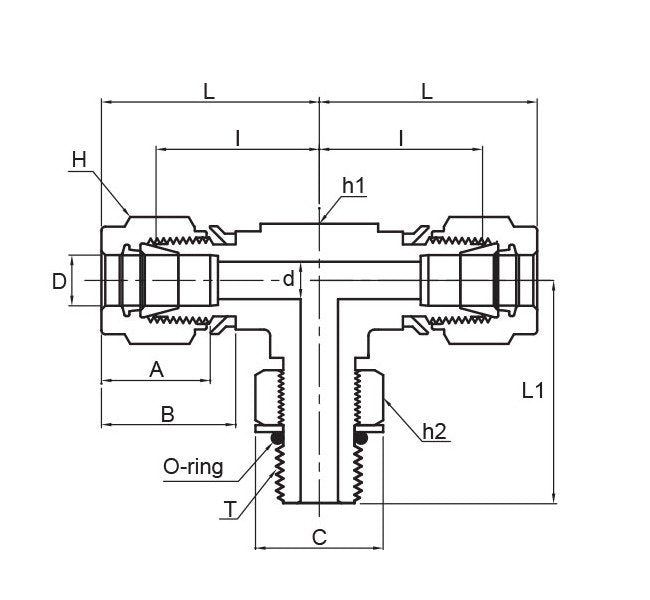

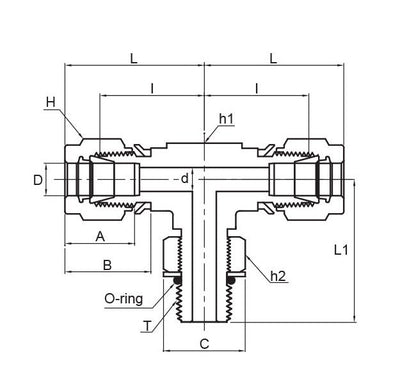

Technical Specs Connection Type

Female

Technical Specs Dimension A

31.2 mm

Technical Specs Dimension B

26.4 mm

Technical Specs Dimension C

43.9 mm

Technical Specs Dimension I

38.4 mm

Technical Specs Dimension L

50.5 mm

Technical Specs Dimension L1

53.6 mm

Technical Specs Material

Technical Specs Minimum Dimension D

21.8 mm

Technical Specs Standard Size

6 to 25 mm

Technical Specs Straight Thread T U

1-5/16-12 mm

Technical Specs Tube Outside Diameter D

25 mm

Technical Specs Width Across Flat H

38 mm

Technical Specs Width Across Flat H1

34.9 mm

Technical Specs Width Across Flat H2

38.1 mm
