25mm Tube Outside Diameter Union Elbow - SUEI Series
25mm Tube Outside Diameter Union Elbow - SUEI Series
SKU:SUE-5fdd6f
Precision-engineered 25mm Tube Union Elbow with BMT's i-Fitting® design for optimal compression and safety in high-pressure environments.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
25mm Tube Outside Diameter Union Elbow - SUEI Series
$45.99
Quantity: 1
Claim Your Seller Account
25mm Tube Outside Diameter Union Elbow - SUEI Series
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

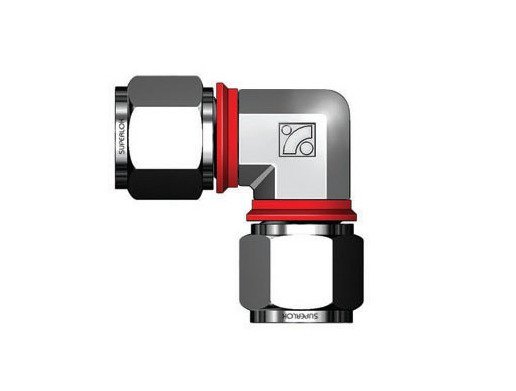

The SUEI Series 25mm Tube Outside Diameter Union Elbow is a precision-engineered fitting designed to connect metric tubes effectively. Made from a range of high-quality materials including Alloy 625, Stainless Steel, and more, it offers superior durability and corrosion resistance. Featuring BMT's patented i-Fitting® design, this union elbow ensures perfect compression with its built-in check ring, enhancing safety in high-pressure environments. Ideal for valve connections, this industry-changing fitting improves installer productivity, reduces costs, and solves tightening issues.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

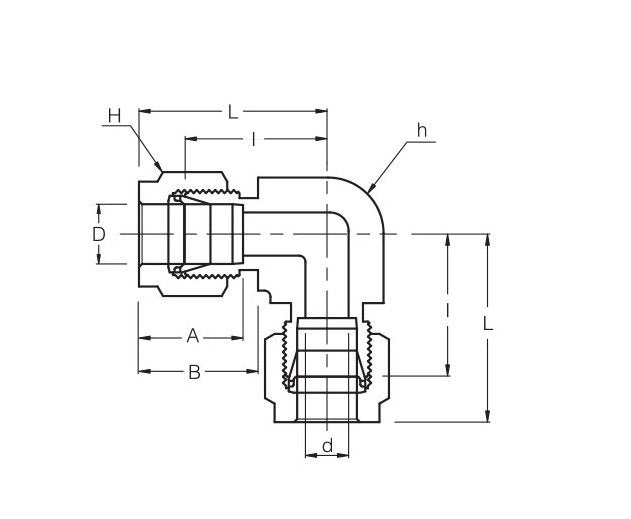

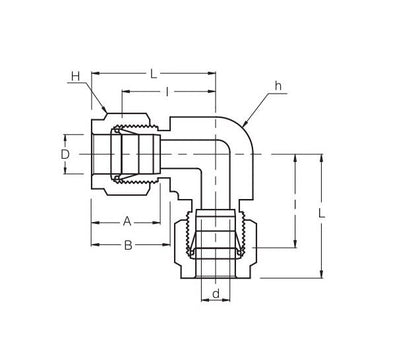

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
31.3 mm
Technical Specs Dimension B
26.5 mm
Technical Specs Dimension I
36.8 mm
Technical Specs Dimension L
49.1 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
21.8 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
25 mm
Technical Specs Width Across Flat H
38 mm
