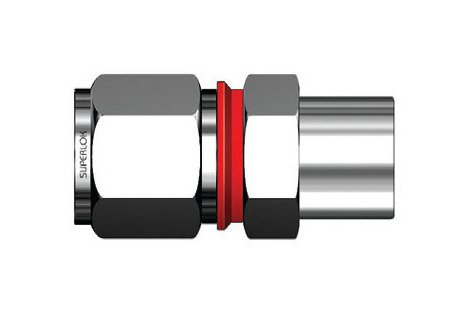

The SSWCI Series 25mm Tube Socket Weld Connector Fitting is a precision-engineered solution for connecting metric tubes. Made from high-quality materials including Alloy 625, Alloy 825, and Stainless Steel, this fitting ensures durability and reliability. It features innovative i-Fitting® components for perfect compression, enhancing installer safety, productivity, and cost-efficiency. Designed for high-pressure and hazardous environments, this industry-changing fitting meets stringent standards for valve connections.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

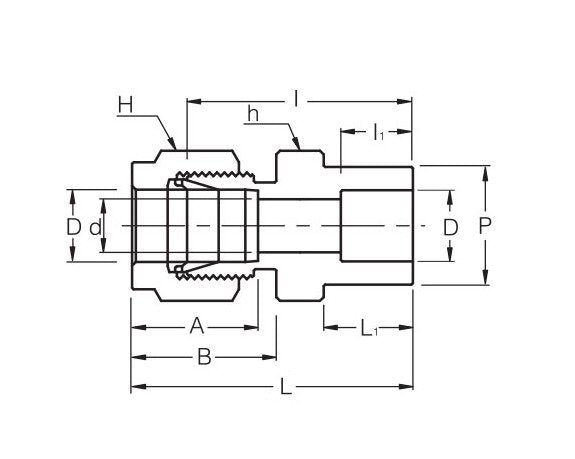

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
31.2 mm
Technical Specs Dimension B
26.4 mm
Technical Specs Dimension I
40.4 mm
Technical Specs Dimension I1
19.1 mm
Technical Specs Dimension L
52.6 mm
Technical Specs Dimension L1
14.2 mm
Technical Specs Dimension P
33.27 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
21.8 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
25 mm
Technical Specs Width Across Flat H
38.1 mm
