The SUI Series 25mm Tube Outside Diameter Union is a precision component designed to connect metric tubes with efficiency and reliability. Crafted from high-quality materials including Alloy 625, Alloy 825, and Stainless Steel, this union ensures durability and longevity in various industrial applications. The innovative i-Fitting® design features a built-in gap gauge, enhancing installer safety, increasing productivity, and reducing costs. This patented union is ideal for valve connections in high-pressure and chemical environments, offering a reliable solution for over- and under-tightening issues.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

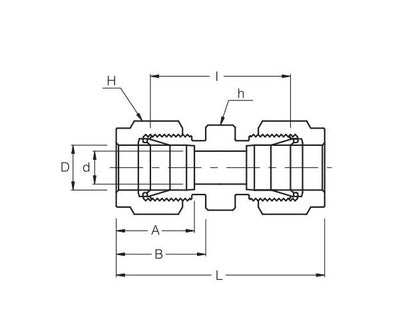

Technical Specs Dimension A
31.3 mm
Technical Specs Dimension B
26.5 mm
Technical Specs Dimension I
40.4 mm
Technical Specs Dimension L
65.0 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
21.8 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
25 mm
Technical Specs Width Across Flat H
38 mm
