25mm Tube Union Cross Fitting for Metric Connections
25mm Tube Union Cross Fitting for Metric Connections
SKU:SUC-0ca32c
Enhance your metric tube connections with the innovative SUCI Series 25mm Union Cross Fitting featuring i-Fitting® technology for enhanced safety and efficiency.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
25mm Tube Union Cross Fitting for Metric Connections
$39.99
Quantity: 1
Claim Your Seller Account
25mm Tube Union Cross Fitting for Metric Connections
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

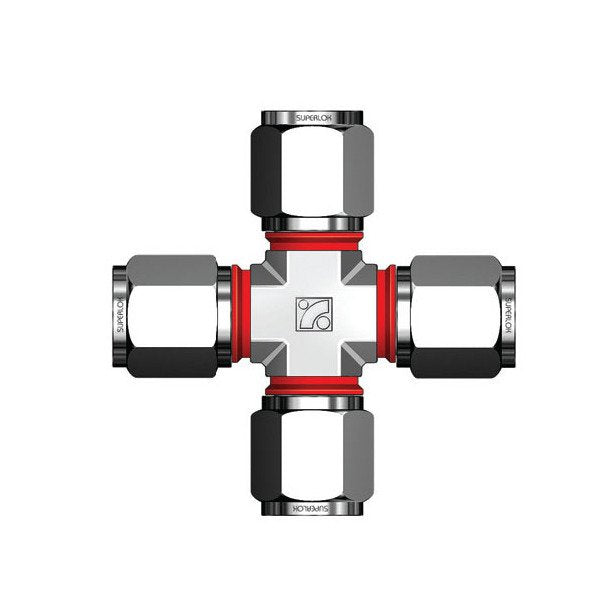

The SUCI Series 25mm Tube Outside Diameter Union Cross Fitting is a precision-engineered component that ensures secure metric tube connections. Crafted from high-quality materials including Alloy 625, Alloy 825, and Stainless Steel, this fitting features innovative i-Fitting® technology for enhanced safety and efficiency. The built-in gap gauge, check ring, guarantees optimal compression, addressing common tightening issues. Ideal for valve connections, this product not only improves productivity but also meets stringent industry standards for performance and reliability.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

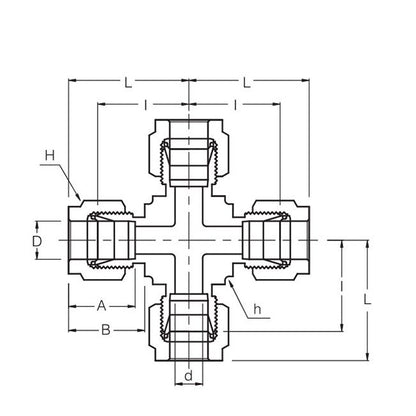

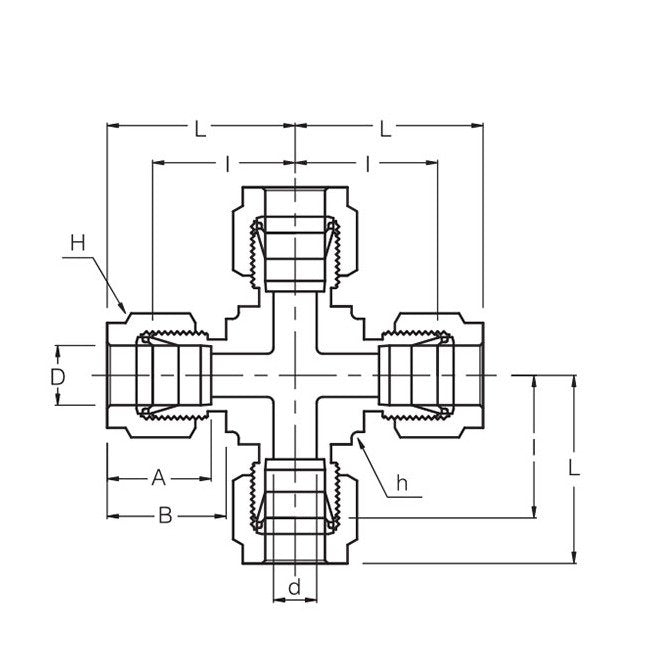

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
31.3 mm
Technical Specs Dimension B
26.5 mm
Technical Specs Dimension I
36.8 mm
Technical Specs Dimension L
49.1 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
21.8 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
25 mm
Technical Specs Width Across Flat H
38 mm
