26-Inch Vacuum Negative Pressure Glovebox
26-Inch Vacuum Negative Pressure Glovebox
SKU:GLO-af2db2
Enhance anaerobic processing with our efficient 26-Inch Negative Pressure Glovebox, offering precise vacuum control and sturdy construction.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
26-Inch Vacuum Negative Pressure Glovebox
$2,899.99
Quantity: 1
Claim Your Seller Account
26-Inch Vacuum Negative Pressure Glovebox
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

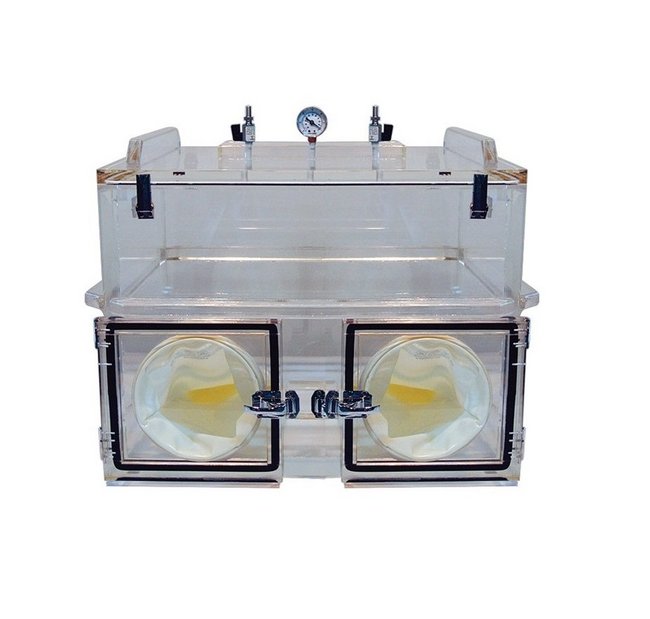

The 26-Inch Vacuum Negative Pressure Glovebox is engineered for anaerobic processing in a dry inert gas setting, offering a maximum vacuum capacity of 29.8 in.Hg. Ideal for degassing applications, this glovebox features a sturdy clear acrylic construction with two glove ports, a vacuum gauge for pressure monitoring, and a vacuum control unit for automated vacuum level maintenance. With options including a vacuum airlock transfer chamber, a two-stage rotary vacuum pump, and an epoxy powder-coated steel stand, this glovebox ensures precise control and efficient performance. It is designed for small chamber applications and comes with advanced features like vacuum valves, glove covers, and an automatic purge control unit for enhanced functionality.
Product Specifications
Additional Information Additional Information
1" wall reinforced Acrylic constructionTwo removable glove coversFully removable top lid for easy transfer of large partsTwo vacuum valves with a barbed fitting for vacuum and nitrogen backfillTwo 8" OD glove ports that accept standard dry box gloves with 8" cuff size.Vacuum Gauge 0-30 in for monitoring main chamber and airlock internal pressure
Options Options
Vacuum Airlock Transfer chamber with dual barbed fitting Vacuum Gauge 0 to 30 in. Hg (main chamber and airlock)Two-stage Continuous Duty, Rotary Vacuum Pump 6 CFM Tubing, Vacuum-Rated 3-A Sanitary Clear PVC, 3/8ââ ID, feet length Vacuum Control Unit, 120V/ 240V Monitors the vacuum level and automatically maintains a preset vacuum level (up to 29.8ââ Hg )Epoxy powder coated steel stand with caster (including two locking). Available in 30'' and 35'' height with an optional upgrade to levelling mounts.Dry box gloves/bare hand entry (IRIS port).Automatic purge control unit with RH or O2 sensor.
Specifications Approximate Chamber Volume
5 ft²
Specifications Chamber Size
Small
Specifications Configuration
Vacuum Negative Pressure
Specifications Main Chamber Depth
16 in
Specifications Main Chamber Height
18 in
Specifications Main Chamber Width
24 in
Specifications Material
Clear Acrylic
Specifications Number Of Glove Ports
2
Specifications Overall Airlock Depth
12 in
Specifications Overall Airlock Height
12 in
Specifications Overall Airlock Width
12 in
Specifications Overall Depth
18 in
Specifications Overall Height
20 in
Specifications Overall Width
26 in
