26 Series Circuit Board Support: .125 Board Hole x .187 Chassis Hole
26 Series Circuit Board Support: .125 Board Hole x .187 Chassis Hole
SKU:01C-2ee131
Durable and efficient circuit board support with reverse locking design, ideal for easy installation, RoHS compliant, and ASTM D4066 PA111 certified.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
26 Series Circuit Board Support: .125 Board Hole x .187 Chassis Hole
$12.99
Quantity: 1
Claim Your Seller Account
26 Series Circuit Board Support: .125 Board Hole x .187 Chassis Hole
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

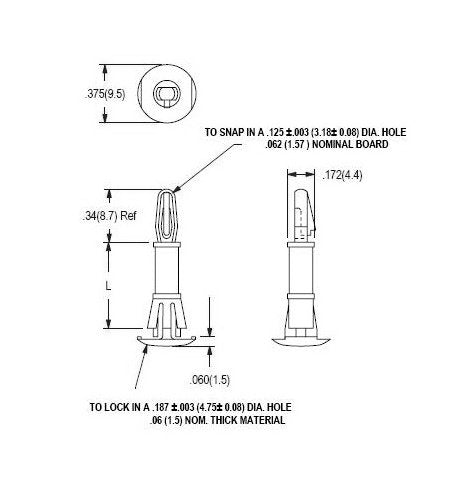

The 26 Series Circuit Board Support is a reverse locking board support designed for easy installation, allowing insertion from the chassis underside. Made of Nylon 66 UL94V-2 material (UL94V-0 available), this support is durable and reliable. It comes in a natural color and is RoHS compliant, ensuring environmental responsibility. With a temperature range of -40 to 185 F (-40- to 85 C), this support is suitable for various operating conditions. The support is ASTM D4066 PA111 certified and meets industry standards for quality and performance.
Product Specifications
Specifications L
.500 (12.7) inches (mm)
