26 Series Circuit Board Support: .125 Board Hole x .187 Chassis Hole
26 Series Circuit Board Support: .125 Board Hole x .187 Chassis Hole
SKU:01C-197435
Durable reverse locking board support for circuit boards, meets RoHS standards, easy to install, temperature-resistant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
26 Series Circuit Board Support: .125 Board Hole x .187 Chassis Hole
$29.99
Quantity: 1
Claim Your Seller Account
26 Series Circuit Board Support: .125 Board Hole x .187 Chassis Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

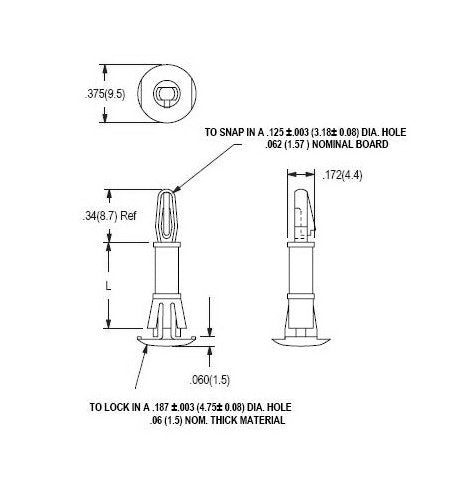

The 26 Series Circuit Board Support is a reverse locking board support designed for easy installation, allowing for insertion from the chassis underside. Made from Nylon 66 UL94V-2 material (UL94V-0 available), this support is durable and reliable. It has a natural color and comes in a packaging of 1000 per bag. With UL File# E41938 and ASTM D 4066 PA111 compliance, this board support meets RoHS standards, ensuring environmental safety. Operating within a temperature range of -40 to 185 F (-40 to 85 C), it offers stability in various conditions.
Product Specifications
Specifications L
.250 (6.4) inches (mm)
