26 Series Circuit Board Support with .125 Board Hole x .187 Chassis Hole
26 Series Circuit Board Support with .125 Board Hole x .187 Chassis Hole
SKU:01C-f00e60
Premium 26 Series Circuit Board Support with .125 Board Hole x .187 Chassis Hole for secure installation and durable performance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
26 Series Circuit Board Support with .125 Board Hole x .187 Chassis Hole
$29.99
Quantity: 1
Claim Your Seller Account
26 Series Circuit Board Support with .125 Board Hole x .187 Chassis Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

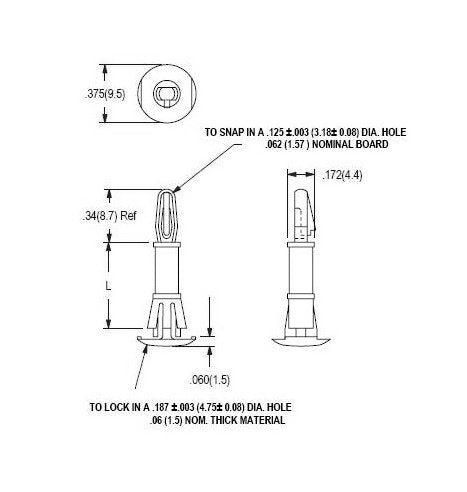

The 26 Series Circuit Board Support with .125 Board Hole x .187 Chassis Hole is a premium reverse locking board support designed for easy installation by inserting from the chassis underside. Made from durable Nylon 66 UL94V-2 material (UL94V-0 available on request), this support is RoHS compliant, ensuring environmental responsibility. With a temperature range of -40 to 185 F (-40- to 85 C), this support offers reliable performance in varying conditions. Measuring .625 inches (15.9mm), it provides secure support for circuit boards while maintaining stability. Ideal for both consumer electronics and institutional applications, this support comes in a pack of 1000 for bulk requirements.
Product Specifications
Specifications L
.625 (15.9) inches (mm)
