26 Series Nylon Board Supports with .125 Board Hole & .187 Chassis Hole
26 Series Nylon Board Supports with .125 Board Hole & .187 Chassis Hole
SKU:01C-855d6c
Secure and durable Nylon board supports for easy circuit board mounting with a reverse locking mechanism and RoHS compliance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
26 Series Nylon Board Supports with .125 Board Hole & .187 Chassis Hole
$29.99
Quantity: 1
Claim Your Seller Account
26 Series Nylon Board Supports with .125 Board Hole & .187 Chassis Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

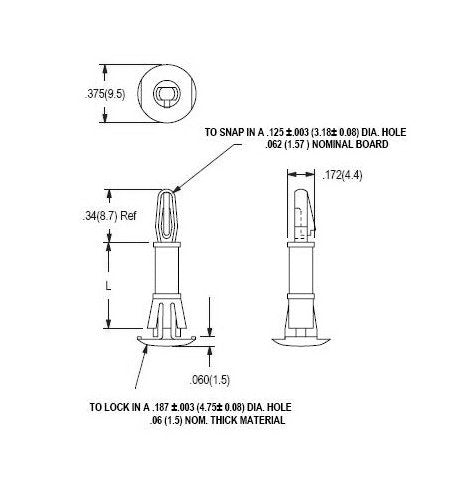

The 26 Series Nylon Board Supports are designed for secure and durable mounting of circuit boards. Featuring a reverse locking mechanism for easy installation, these supports are inserted from the chassis underside. Made of Nylon 66 UL94V-2 material (UL94V-0 available), these supports are RoHS compliant and can withstand temperatures ranging from -40 to 185°F (-40 to 85°C). Each pack contains 1000 supports, and they come in a natural color. With a length of .375 inches (9.5 mm), these supports offer reliable stability for your circuit board assembly.
Product Specifications
Specifications L
.375 (9.5) inches (mm)
