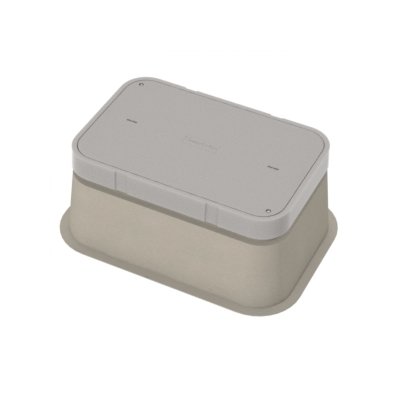

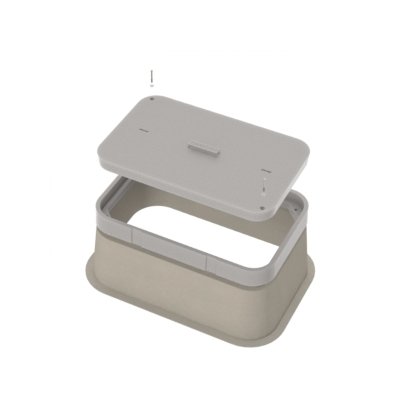

27-Inch Fiberglass Concrete Handhole Assembly with Straight Sides
27-Inch Fiberglass Concrete Handhole Assembly with Straight Sides
SKU:HAN-0e9aab
Durable Fiberglass Concrete Handhole Assembly with Straight Sides & Stainless Steel Bolts - Meets WUC 3.6-''20K'' Standards
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
27-Inch Fiberglass Concrete Handhole Assembly with Straight Sides
$899.99
Quantity: 1
Claim Your Seller Account
27-Inch Fiberglass Concrete Handhole Assembly with Straight Sides
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your infrastructure with the newbasis PCX™ Fiberglass Concrete Assembly. This assembly features straight sides, stainless steel 3/8'' hex bolts, and a durable construction that meets WUC 3.6-''20K'' standards. With a high compressive strength of 87 MPa, this assembly is ideal for institutional applications requiring reliability and longevity. Customize with optional features like tapered sides, custom nameplates, and more.
Product Specifications
Available Options
Tapered Sides, Penta Bolts, Telephone EMS, Power EMS, Racks (2), Knockouts, Floor, 2 Piece Cover, Custom Nameplate Installed, Custom Nameplate Shipped Separately, Standard Nameplate Installed, Standard Nameplate Shipped Separately
Dimensional Attributes Height
30 in
Dimensional Attributes Inside Depth
27 in
Dimensional Attributes Inside Length
42 3/8 in | 45 1/2 in
Dimensional Attributes Inside Width For 42 38 In Length
24 7/8 in
Dimensional Attributes Inside Width For 45 12 In Length
27 7/8 in
Dimensional Attributes Length
48 in
Dimensional Attributes Width
30 in
Features
USDA/RUS ApprovedDrop-In nameplateShipped assembledSkid resistant coverCast-in floating nut box - Integral drain holes
Load Ratings
Incidental Traffic - Parking Lot, Sidewalk Conforms to:WUC 3.6ASTM C 857ANSI/SCTE 77
Material Properties
Advanced composite: Very high strength to weight ratioNon-metallicNon-conductiveUV ResistantHigh impact resistantImpervious to chemicals and moistureMaterials tested in accordance with ASTM D-543 and ASTM D-570
Nameplates
One standard nameplate included with each assembly, installed at the factory or easily installed in the field. Custom nameplates are available. Contact customer service.Standard NameplatesElectricTelephoneFiber OpticWaterIrrigation Control ValveBroadbandTrafficCATVTraffic SignalCommunications
Specifications Assembly Weight
445 lb
Specifications Bolt Head Type
Hex
Specifications Bolt Material
Stainless Steel
Specifications Bolt Size
3/8 in
Specifications Box Weight
242 lb
Specifications Brand
newbasis, PCX™
Specifications Coefficient Of Friction Dry Per American Society
1.085
Specifications Compressive Strength Per American Society For Tes
87 MPa
Specifications Cover Weight
203 lb
Specifications Fiber Reinforced Polymers Frp Compressive Strengt
134 MPa
Specifications Fiber Reinforced Polymers Frp Flexural Strength P
116 MPa
Specifications Flexural Strength Per American Society For Testin
20 MPa
Specifications Industry Standardscertifications
WUC 3.6 -''20K''
Specifications Loaded Pallet Weight
1185 lb
Specifications Material
Fiberglass Concrete
Specifications Packaging
Steel Banding, Edge Protection
Specifications Pallet Quantity
2
Specifications Side
Straight
Specifications Type
Fiberglass Concrete Assemblies
