27 Series 4mm Dual Locking Support Post - Pack of 1000

Name: 27 Series 4mm Dual Locking Support Post - Pack of 1000
Brand: All Electronics Hardware
SKU: 01C-342f74
Price: 99.99 USD
Availability: OutOfStock

SKU:01C-342f74

Secure metric dual-locking support post for circuit boards. Pack of 1000, Nylon 66 material, UL94V-2, RoHS compliant.

$99.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

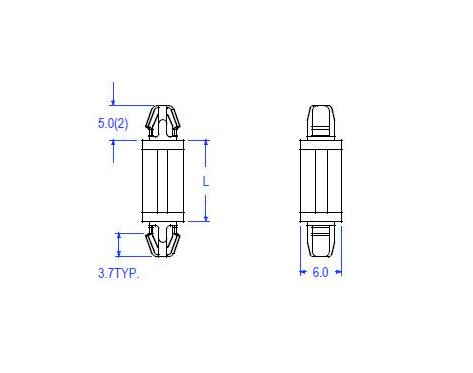

The 27 Series 4mm Dual Locking Support Post is a metric dual-locking post designed for secure mounting with a 4mm Mounting Hole on both ends. Constructed from Nylon 66 material, it meets UL94V-2 standards (V-0 available with 'X' at the end of part#), ensuring high-quality and flame retardant properties. This pack of 1000 support posts is RoHS compliant and suitable for a temperature range of -40 to 185 F. With a natural color and precise dimensions, these posts provide reliable support for circuit boards meeting the highest industry standards.

Product Specifications

Specifications Color

Natural

Specifications Dim L

12.0 ± .38 mm

Specifications Material Code

UL94V-2

Specifications Mounting Hole Diameter

4.0 mm

Specifications Pt Panel Thickness

1.6 mm

Specifications Remarks Panel Thickness

Nominal Thickness, Panel thickness is for both ends.
