27 Series Metric Support Post with Dual Locking Mechanism
27 Series Metric Support Post with Dual Locking Mechanism
SKU:01C-de0f68
Secure and durable metric support post with dual locking mechanism for circuit board installations.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
27 Series Metric Support Post with Dual Locking Mechanism
$24.99
Quantity: 1
Claim Your Seller Account
27 Series Metric Support Post with Dual Locking Mechanism
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

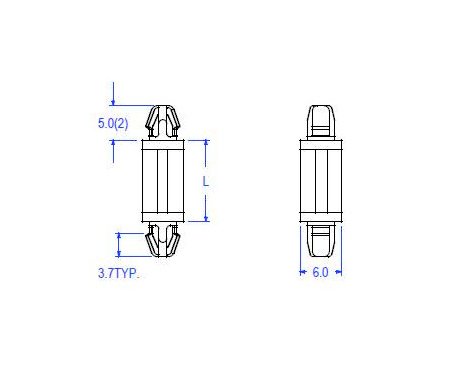

The 27 Series Metric Support Post features a dual locking mechanism designed for optimal stability in circuit board installations. With a 4mm Mounting Hole at both ends, this support post ensures secure attachment. Constructed from Nylon 66 material (UL94V-2), this product guarantees durability and safety. Additionally, it meets RoHS compliance standards and operates within a temperature range of -40 to 185 F, making it ideal for various environments. For enhanced safety, the V-0 option is available by adding 'X' to the end of the part number.
Product Specifications
Specifications Color
White
Specifications Dim L
10.0 ± .38 mm
Specifications Material Code
UL94V-0
Specifications Mounting Hole Diameter
4.0 mm
Specifications Pt Panel Thickness
1.6 mm
Specifications Remarks Panel Thickness
Nominal Thickness, Panel thickness is for both ends.
